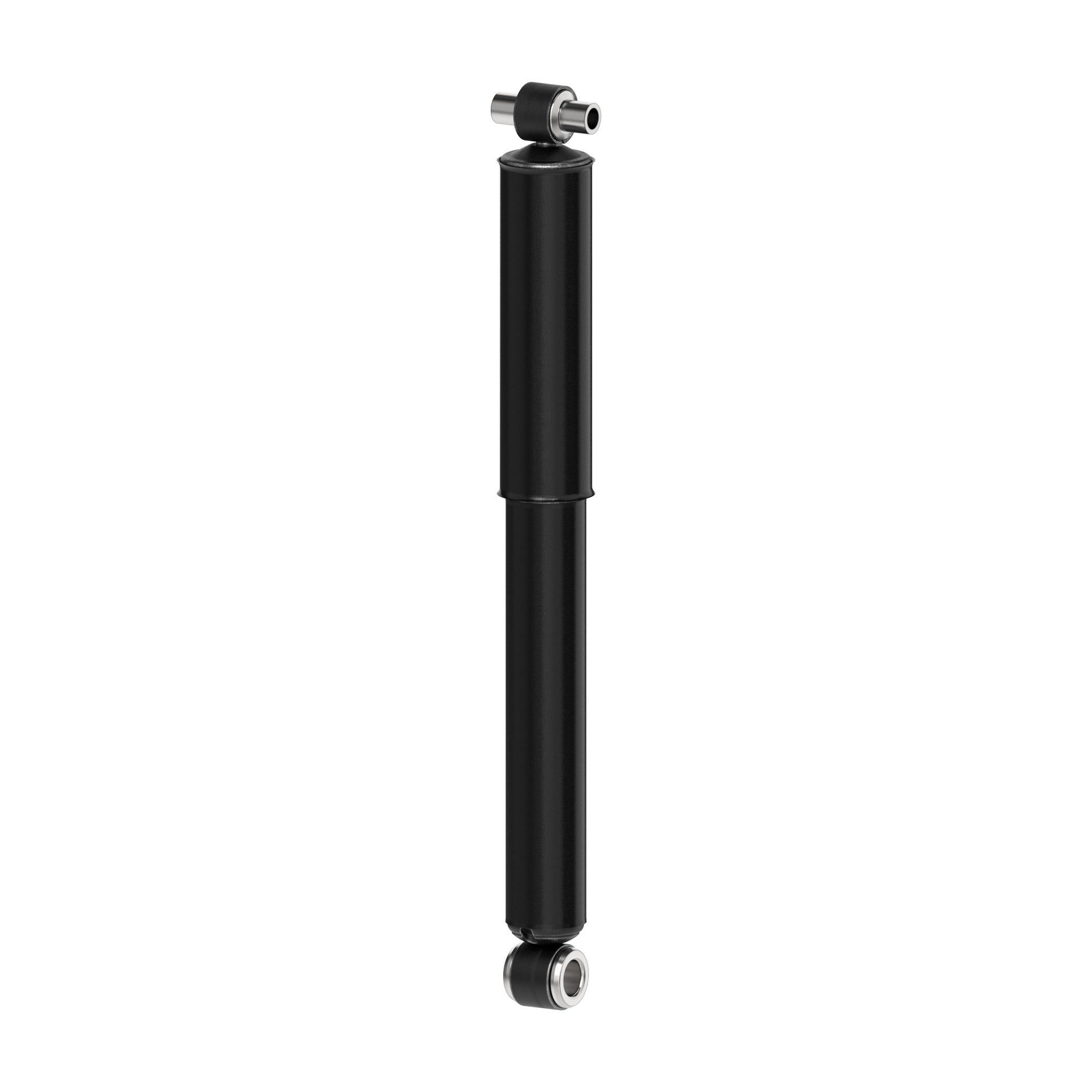

Front Shock Absorber Black 25.88" Gas Charged - 65159
Part#: 1M061-8623
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 25.875 |
| Extended Length (MM) | 657.20000000000005 |
| Lower Mount Type | Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 15.875 |
| Compressed Length (MM) | 403.19999999999999 |
| Travel Length (IN) | 10 |
| Travel Length (MM) | 254 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS87 |
| Lower Mount Code | L4 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 315548 |
| 315654 |
| 341613 |
| 341624 |
| 44185070 |
| 58064 |
| 58064MB |
| 65159M0R |
| 65159MM |
| 665858 |
| 6658582 |
| 66585840Y |
| 6658587C1 |
| 671052 |
| 6710522 |
| 83176228 |
| 85070 |
| 89459 |
| 9160190 |
| 9180151 |
| 925125 |
| 98031002 |
| A85070 |
| ABPN32G900021 |
| ABPN32O900021 |
| AMS65159 |
| AV065157 |
| AV065159 |
| B711001 |
| F347227 |
| F347233 |
| HD12150020 |
| HS85070 |
| M85070 |
| M89459 |
| MAE65159 |
| OTR65159 |
| PROSH85070 |
| RCSA5070 |
| SA5070 |
| SA65159 |
| SSA85070 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
