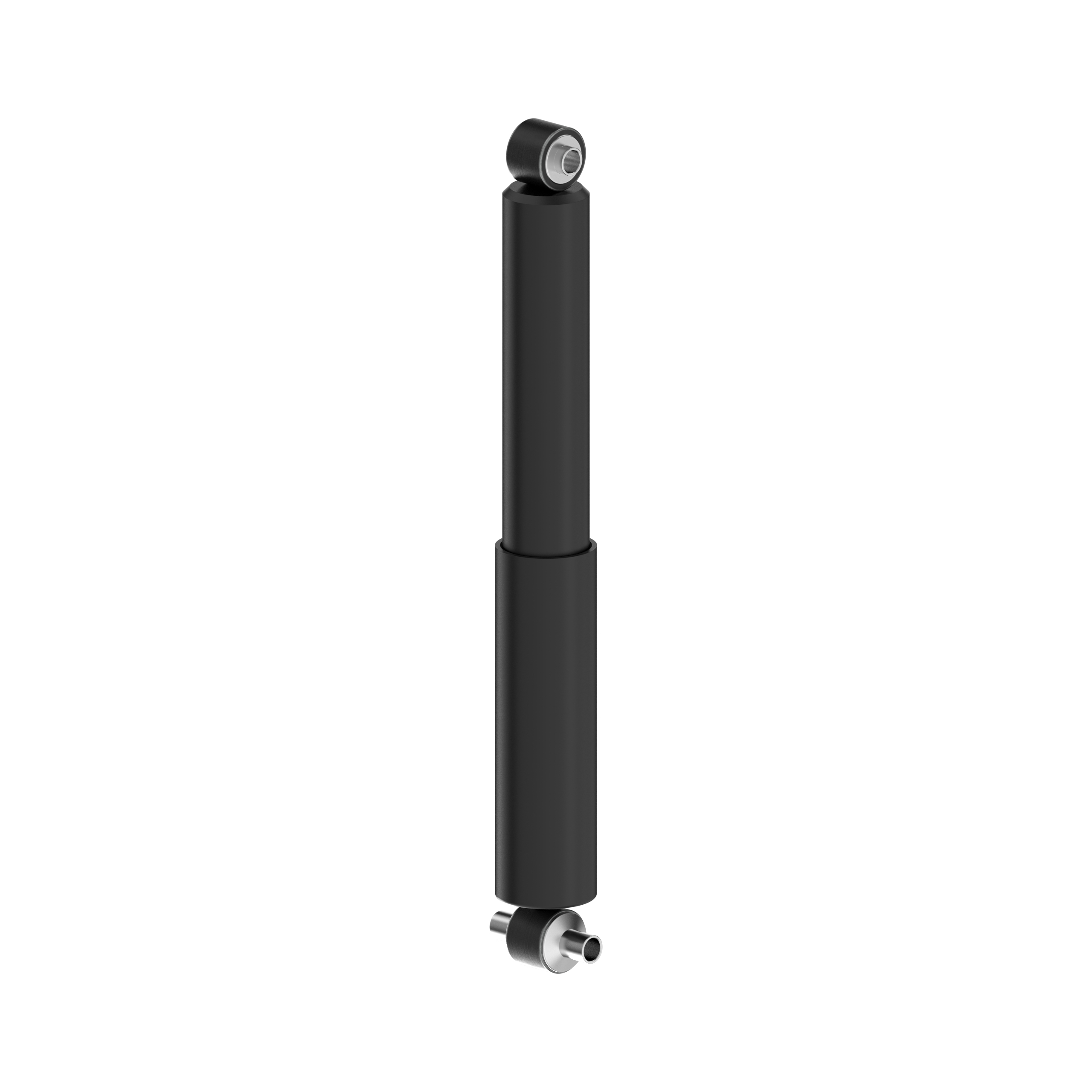

Shock Absorber Gas-Charged Rear Drive Axle - 565.ER3148

Shock Absorber Gas-Charged Rear Drive Axle - 565.ER3148

Part#: 665549

Features and Benefits

Drive shock absorber product type for accurate identification during service
Extended length of 22.52" for the shock absorber travel specification
Collapsed length of 14.52" for the shock absorber compressed dimension
Kit contents of sold individually for the product specification
Direct-fit shock absorber for simplified installation on compatible suspension systems

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Position	Rear Drive Axle
Charge Type	Gas-Charged
Sold	Individually
Stock	4 In Stock
Type	Gas-Charged Shock Absorber
Construction	Steel Body With Gas-Charge Valving
Function	Absorbs Road Impact, Controls Rebound & Compression
Installation	Bolt-On Replacement To Factory Mounting Points
Benefits	Smoother Ride, Reduced Vibration, Improved Stability
Part Type	Shock Absorber
Description	Shock Absorber
Type	G85900 & 89400
Gabriel Number	85642.00
Product Line	Fleetline
Collapsed Length	14.52
Stroke	8.00
Controls Rebound	1920.00
Controls Compression	309.00
External Diameter Illustration	G
Dust Tube	Yes
Recoil Cutoff	Yes
Extended Length	22.52
Upper Mount	Es177
Lower Mount	Es90
Bore	1.62 in.
Nonsaleable	No
Manufacturing Type	New Aftermarket
Product Description	Suspension Shock Absorber With Dust Shield
Compressed Length	14.49 in.
Extended Length	22.33 in.
Stroke	7.83 in.
Adjustable Damping	No
Air Adjustable	No
Air Bladder	No
Air Ride Suspension	No
Bearing Plate Included	No
Boot Included	No
Coil Over Springs Included	No
Coil Spring Included	No
Dust Shield Included	Yes
Gas Charged	Yes
Heavy Duty Crimping Rings	No
Lower Mount Type	Loop (Eyelet) Bushing And Sleeve
Outer Housing Diameter	2.37 in.
Protective Aluminum Can	No
Upper Mount Type	Loop (Eyelet) Bushing And Sleeve
Type	Drive Shock Absorber
Extended Length	22.52 in.
Collapsed Length	14.52 in.
OEM/Aftermarket	Aftermarket Replacement Part (Not OEM)
Kit Contents	Sold Individually

Interchange

016003016
4069426C1
4069434C1
4069435C1
565.ER3148
6127666C1
6127766C1
65549
85642
925169
GAB-A85642
HD1115-0083
HD11150083
M65549

Year	Make	Model

2026	INTERNATIONAL	LT625
2026	INTERNATIONAL	MV607
2025	INTERNATIONAL	LT
2025	INTERNATIONAL	LT625
2025	INTERNATIONAL	MV607
2025	INTERNATIONAL	RH
2024	INTERNATIONAL	LONESTAR
2024	INTERNATIONAL	LT
2024	INTERNATIONAL	LT625
2024	INTERNATIONAL	MV607
2024	INTERNATIONAL	RH
2024	INTERNATIONAL	RH613
2024	NEXUS	GHOST
2023	INTERNATIONAL	LONESTAR
2023	INTERNATIONAL	LT
2023	INTERNATIONAL	LT625
2023	INTERNATIONAL	MV607
2023	INTERNATIONAL	RH
2023	INTERNATIONAL	RH613
2023	NEXUS	GHOST
2022	INTERNATIONAL	LONESTAR
2022	INTERNATIONAL	LT
2022	INTERNATIONAL	LT625
2022	INTERNATIONAL	MV607
2022	INTERNATIONAL	RH
2022	INTERNATIONAL	RH613
2022	NEXUS	GHOST
2021	INTERNATIONAL	LONESTAR
2021	INTERNATIONAL	LT
2021	INTERNATIONAL	LT625
2021	INTERNATIONAL	MV607
2021	INTERNATIONAL	RH
2021	INTERNATIONAL	RH613
2021	NEXUS	GHOST
2020	INTERNATIONAL	LONESTAR
2020	INTERNATIONAL	LT
2020	INTERNATIONAL	LT625
2020	INTERNATIONAL	MV607
2020	INTERNATIONAL	PROSTAR
2020	INTERNATIONAL	RH
2020	INTERNATIONAL	RH613
2020	NEXUS	GHOST
2019	INTERNATIONAL	LONESTAR
2019	INTERNATIONAL	LT
2019	INTERNATIONAL	LT625
2019	INTERNATIONAL	MV607
2019	INTERNATIONAL	PROSTAR
2019	INTERNATIONAL	RH
2019	INTERNATIONAL	RH613
2019	NEXUS	GHOST
2018	INTERNATIONAL	LONESTAR
2018	INTERNATIONAL	LT
2018	INTERNATIONAL	LT625
2018	INTERNATIONAL	PROSTAR
2018	INTERNATIONAL	RH
2018	INTERNATIONAL	RH613
2018	NEXUS	GHOST
2017	INTERNATIONAL	LONESTAR
2017	INTERNATIONAL	LT625
2017	INTERNATIONAL	PROSTAR
2017	NEXUS	GHOST
2016	NEXUS	GHOST
2015	NEXUS	GHOST
2014	NEXUS	GHOST

The Shock Absorber is engineered for reliable suspension damping on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
