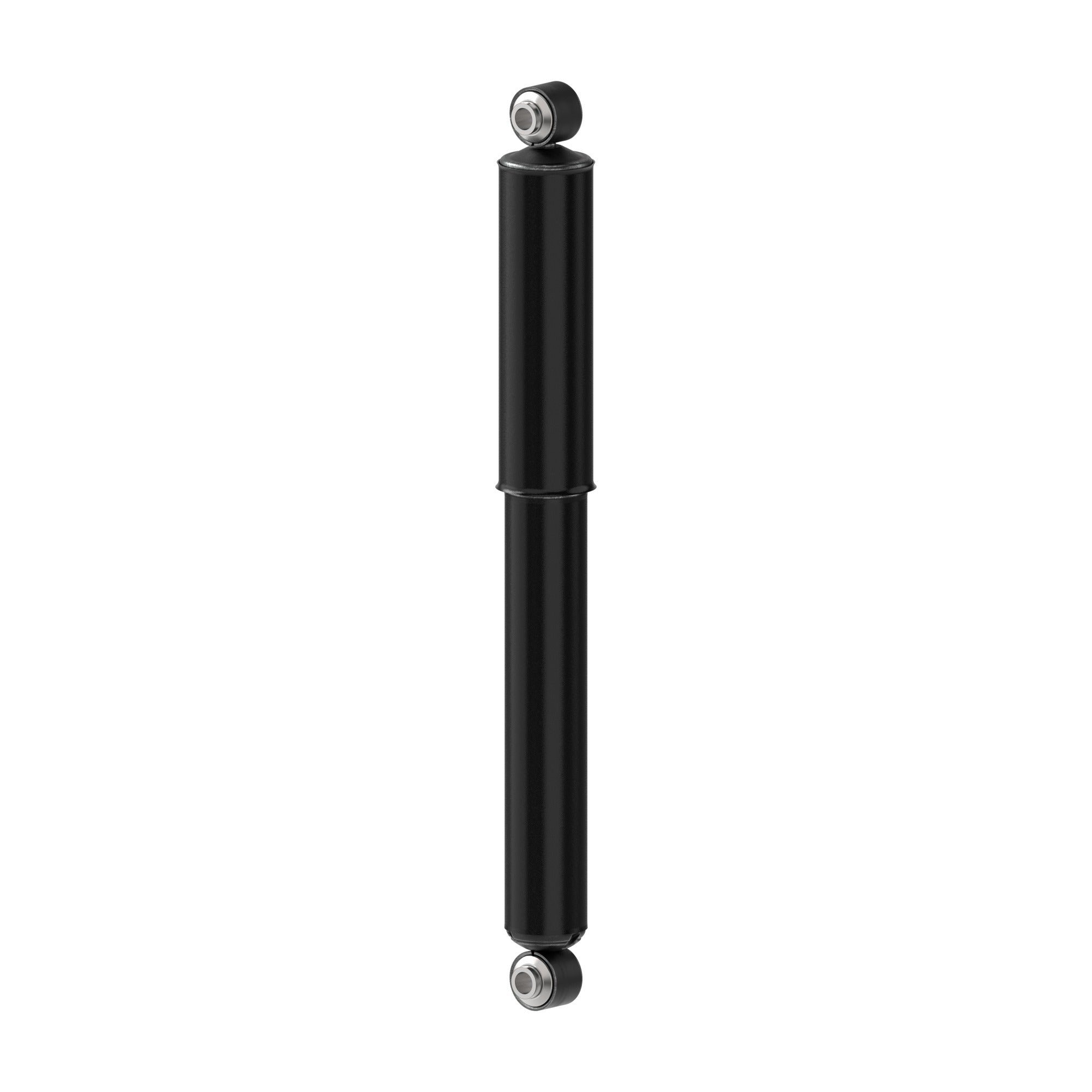

Rear Shock Absorber Black 24.75" Gas Charged - 65409
Part#: 1M062-7918
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 24.75 |
| Extended Length (MM) | 628.70000000000005 |
| Lower Mount Type | Loop Bushing And Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing And Sleeve |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 15.75 |
| Compressed Length (MM) | 400 |
| Travel Length (IN) | 9 |
| Travel Length (MM) | 228.59999999999999 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS53 |
| Lower Mount Code | LS53 |
| Hydraulic Lockout | Yes |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 101 |
| 1085003 |
| 1085005 |
| 1085308 |
| 108936 |
| 1091368 |
| 1590035C1 |
| 1618708000NCL |
| 1675455C1 |
| 1690035C1 |
| 170139 |
| 2018987C1 |
| 2018987C1PLUS |
| 2018987C1PLUS2 |
| 2018987C2 |
| 315416 |
| 316356 |
| 3199954 |
| 3199990 |
| 341623 |
| 345621 |
| 3577C91 |
| 3892445C1 |
| 3919594 |
| 3919954 |
| 3919990 |
| 4164148C1 |
| 44185003 |
| 4420 |
| 5003 |
| 5007536 |
| 501553C91 |
| 5113928 |
| 57306720 |
| 57365409 |
| 57374420 |
| 58055 |
| 58118MB |
| 600101 |
| 600101MT |
| 601101 |
| 6024 |
| 6116 |
| 650409MT |
| 651409 |
| 65409M |
| 65409M0R |
| 65409MM |
| 66720 |
| 6720 |
| 680185 |
| 68018540Y |
| 6801854OY |
| 680212 |
| 680232 |
| 68023240T |
| 680238 |
| 68023840Y |
| 680242 |
| 68024240Y |
| 680281 |
| 68028140Y |
| 69747 |
| 700418MT |
| 70600 |
| 727617 |
| 728603 |
| 74420 |
| 7587 |
| 7646 |
| 77C91 |
| 8022814 |
| 83100 |
| 83101 |
| 83176213 |
| 85003 |
| 85308 |
| 881562 |
| 89411 |
| 9160094 |
| 9180152 |
| 925272 |
| A85003 |
| A89411 |
| ABPN32G900022 |
| ABPN32O900022 |
| AMS600101 |
| AMS600153 |
| AMS650409 |
| AMS65409 |
| AMS660153 |
| AMS700418 |
| B85003 |
| B85308 |
| C63190 |
| CAX720 |
| DN1085003 |
| DPM65409 |
| E1215 |
| E85003 |
| E85306 |
| E85308 |
| E89411 |
| EIE85003 |
| EIE89411 |
| EIEMN65409 |
| EMN65409 |
| EMN74420 |
| EU65409 |
| EU74420 |
| EU85003 |
| EUE85003 |
| EUE85306 |
| EUE85308 |
| EUE89411 |
| EUEMN65409 |
| EUEMN74420 |
| EUSA65409 |
| EUSA74420 |
| F347266 |
| F65409 |
| F74420 |
| FF74420 |
| FLF65409 |
| FLS85003 |
| FLSD65409 |
| GAB85003 |
| GAB85308 |
| GSX89411 |
| HD12150028 |
| HS85003 |
| L1011 |
| L57646 |
| L76024 |
| LGL76024 |
| LT65409 |
| M1027 |
| M65409 |
| M85003 |
| M89411 |
| MAE65409 |
| MBSA65409 |
| MI65409 |
| MI74420 |
| MISA65409 |
| MISA66956 |
| MISA6720 |
| MISA74420 |
| MN65409 |
| MN6720 |
| MN74420 |
| MNEMN65409 |
| MNEMN74420 |
| MNSA65409 |
| MNSA74420 |
| MO65409 |
| MO6720 |
| MO74420 |
| MON74420 |
| MR65409 |
| MR74420 |
| MS65409 |
| MS6720 |
| MS74420 |
| MSF74420 |
| MSSA65409 |
| MW74420 |
| N65409 |
| N74420 |
| NW65409 |
| R670002 |
| RCSA5003 |
| SA5003 |
| SA65409 |
| SA66956 |
| SA6720 |
| SA74420 |
| SD65409 |
| SMR560420 |
| SSA85003 |
| SSA85009 |
| TR85003 |
| VC85003 |
| WA0185003 |
| WSA0085003 |
| ZYWSA0085003 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
