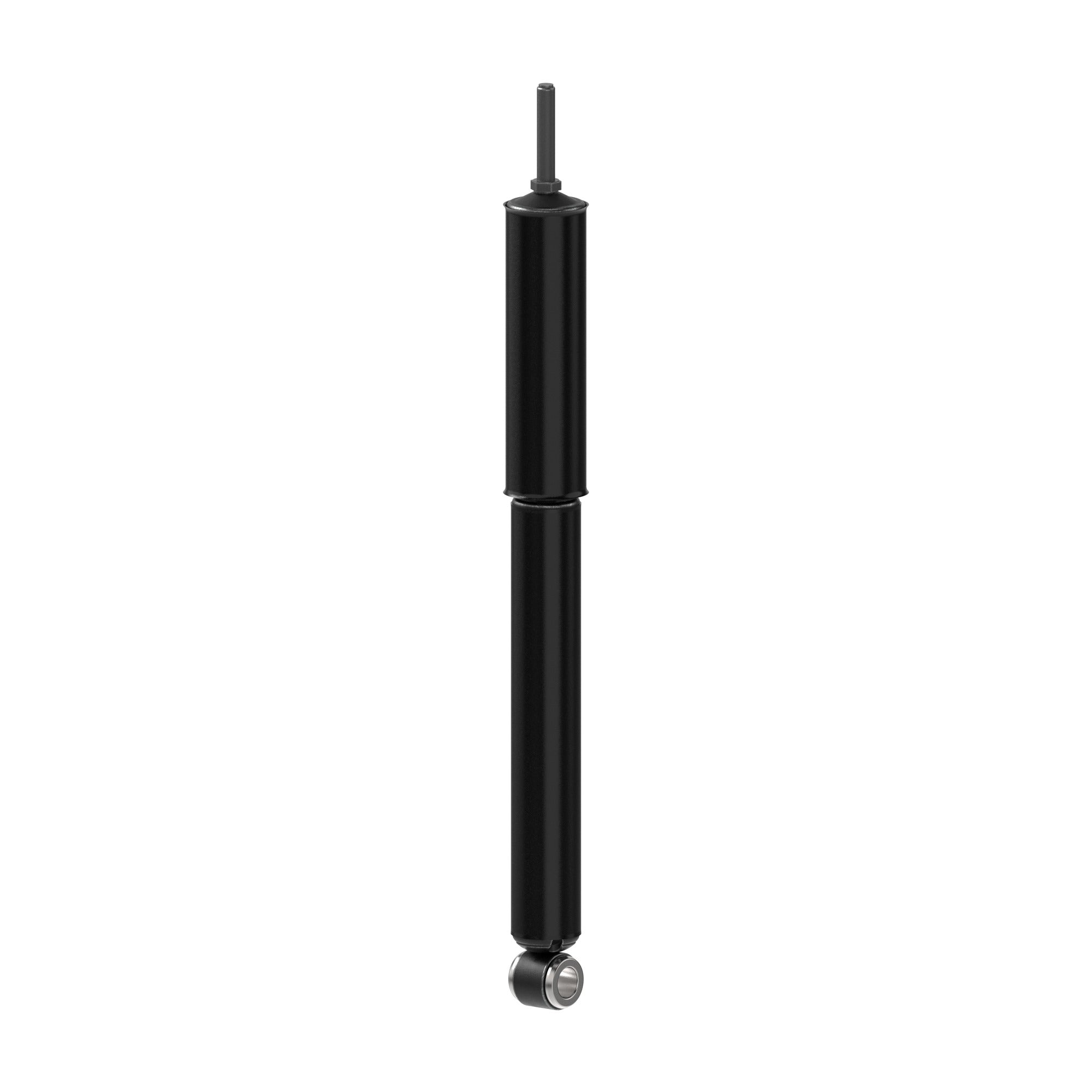

Rear Shock Absorber Black 26.75" Gas Charged - 65400
Part#: 12062-8116
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | Yes |
| Extended Length (IN) | 26.75 |
| Extended Length (MM) | 679.39999999999998 |
| Lower Mount Type | Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing |
| Upper Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Gas Charged | Yes |
| Compressed Length (IN) | 17.375 |
| Compressed Length (MM) | 441.30000000000001 |
| Travel Length (IN) | 9.375 |
| Travel Length (MM) | 238.099999999999994 |
| Shock Absorber Rod End Measuring Point | Base Of Stem |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | S6 |
| Lower Mount Code | L4 |
| Hydraulic Lockout | Yes |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 0306084PLUS |
| 0306084PLUS2 |
| 0306085PLUS |
| 0307423PLUS |
| 0307423PLUS2 |
| 0307423RTB |
| 305106 |
| 305384 |
| 306084 |
| 307423 |
| 3074232 |
| 315549 |
| 316354 |
| 3199946 |
| 341620 |
| 341621 |
| 3919946 |
| 3919976 |
| 3919977 |
| 44185033 |
| 57365400 |
| 57510116 |
| 58093MB |
| 650400 |
| 650400MT |
| 65400M |
| 65400M0R |
| 65400MM |
| 66428 |
| 665633 |
| 665660 |
| 680435 |
| 728634 |
| 7585 |
| 83176217 |
| 85033 |
| 85317 |
| 89427 |
| 9180146 |
| 925109 |
| A85033 |
| ABPN320900039 |
| ABPN32G900039 |
| ABPN32O900039 |
| AMS650400 |
| AMS65400 |
| DPM65400 |
| E1216 |
| E85033 |
| E85317 |
| E89427 |
| EMN65400 |
| EMNEMN65400 |
| EOEUE83317 |
| EU65400 |
| EUE83317 |
| EUE85033 |
| EUE85317 |
| EUE89427 |
| EUEMN65400 |
| EUEMNEMN65400 |
| EUSA65400 |
| F343368 |
| F344353 |
| F344355 |
| F346598 |
| F346599 |
| F346633 |
| F347215 |
| F347303 |
| F65400 |
| FLF65400 |
| FLS85033 |
| GSX89427 |
| HD12140612 |
| HD1215003 |
| HD12150037 |
| HS85033 |
| L971 |
| M1028 |
| M65400 |
| M85033 |
| M89427 |
| MAE65400 |
| MBSA65400 |
| MI65400 |
| MISA65400 |
| MN65400 |
| MNEMN65400 |
| MNEMNEMN65400 |
| MNSA65400 |
| MO65400 |
| MP8005 |
| MS65400 |
| N65400 |
| R670003 |
| SA5033 |
| SA65400 |
| SH004320 |
| SSA85033 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
