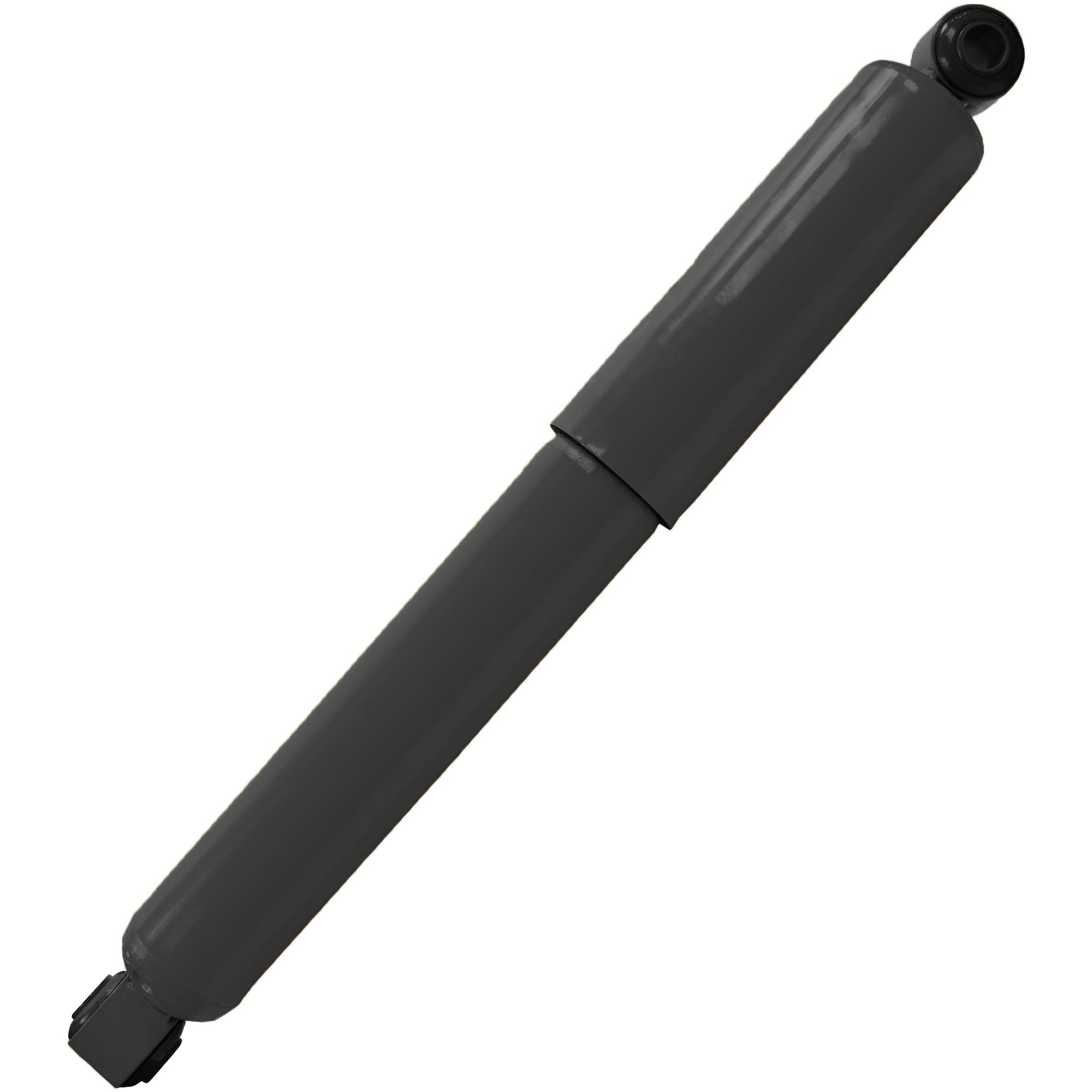

Rear Shock Absorber Black 23.91" Gas Charged - 66878
Part#: 12062-9524
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly on most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in. or 2-1/4 in. reserve tube holds more fluid to improve performance when required
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 23.9063 |
| Extended Length (MM) | 607.20000000000005 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 14.5625 |
| Compressed Length (MM) | 369.89999999999998 |
| Travel Length (IN) | 9.343 |
| Travel Length (MM) | 237.30000000000001 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS54 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 0346SS5 |
| 1083310 |
| 1091363 |
| 1093180 |
| 14QK2100 |
| 14QK2100P1 |
| 14QK2100P5 |
| 14QK2100P7 |
| 14QK372M |
| 1573280 |
| 1668722 |
| 1672501 |
| 16769 |
| 1677707C1 |
| 16787 |
| 1722214 |
| 1949501 |
| 19502PR7A01 |
| 2012501 |
| 2012601 |
| 2015557C1 |
| 2029200C91 |
| 20707753 |
| 22012096 |
| 22012169 |
| 22012196 |
| 22064432 |
| 22065251 |
| 24017329 |
| 25621798 |
| 311635 |
| 315613 |
| 316320 |
| 316815 |
| 316840 |
| 317936 |
| 3192891 |
| 3192892 |
| 3199938 |
| 341620 |
| 341624 |
| 345030 |
| 345613 |
| 373013412 |
| 3919910 |
| 3919938 |
| 403135 |
| 406967 |
| 410068 |
| 44183221 |
| 44185030 |
| 471700000000 |
| 471700000436 |
| 471700000459 |
| 472000000000 |
| 4790218 |
| 4940653 |
| 4975510 |
| 5000813 |
| 507202C1 |
| 50826 |
| 50829 |
| 5170500620 |
| 5398598 |
| 55077 |
| 5533699 |
| 5534401 |
| 5534427 |
| 5549599 |
| 5552115 |
| 557001 |
| 57306878 |
| 57366878 |
| 600157 |
| 600157MT |
| 601157 |
| 651012 |
| 65108 |
| 65123 |
| 651444 |
| 65401 |
| 65421 |
| 65429 |
| 65431 |
| 65454 |
| 65478 |
| 660157 |
| 660157MT |
| 661157 |
| 665405 |
| 66878M0R |
| 66897 |
| 66957 |
| 671923 |
| 680463 |
| 6878 |
| 70650 |
| 70652 |
| 728632 |
| 83221 |
| 83321 |
| 85030 |
| 85030R0K |
| 881422 |
| 881704 |
| 89440 |
| 90045277 |
| 90045420 |
| 90045504 |
| 90045532 |
| 90045813 |
| 9161058 |
| 9180193 |
| 925074 |
| 925107 |
| A20886 |
| A2218 |
| A85030 |
| A85033 |
| ABPN32G900087 |
| ABPN32O900087 |
| AMA85030 |
| AMS600134 |
| AMS600157 |
| AMS600172 |
| AMS650108 |
| AMS650429 |
| AMS650478 |
| AMS660134 |
| AMS660157 |
| AMS66878 |
| AX79A |
| B461594 |
| B461732 |
| B462151 |
| B462385 |
| B462502 |
| CAX878 |
| CAX969 |
| DPM66878 |
| E83221 |
| E83310 |
| E85030 |
| EMN66878 |
| EU66878 |
| EUEMN66878 |
| EUSA66878 |
| F347193 |
| F347315 |
| F347319 |
| F4B461732H1 |
| F66878 |
| F66969 |
| F6HT18045GB |
| F6HT18045GC |
| FLF66878 |
| FLL8503007I |
| FLS83221 |
| GAR85030 |
| HD12140579 |
| HD12150108 |
| HD12150157 |
| HSA5080 |
| KG6001A |
| KG6002A |
| L57662 |
| M66878 |
| M66969 |
| M83221 |
| M85030 |
| MG202447 |
| MISA66878 |
| MN66878 |
| MNEMN66878 |
| MO66878 |
| MO6878 |
| MS66878 |
| MS6878 |
| N66878 |
| OE10219 |
| RIMG202447 |
| S20886 |
| S2218 |
| S26774 |
| SA66878 |
| SA66969 |
| SH66969 |
| TK19679 |
| UEY1124001 |
| UEY11241 |
| W0011635 |
| WA0189440 |
Gas-charged shock absorber designed for class 3-6 vehicles, providing quicker response and enhanced ride stability. Engineered to handle high mileage and severe use, helping reduce excessive vibration and improve overall ride comfort.
