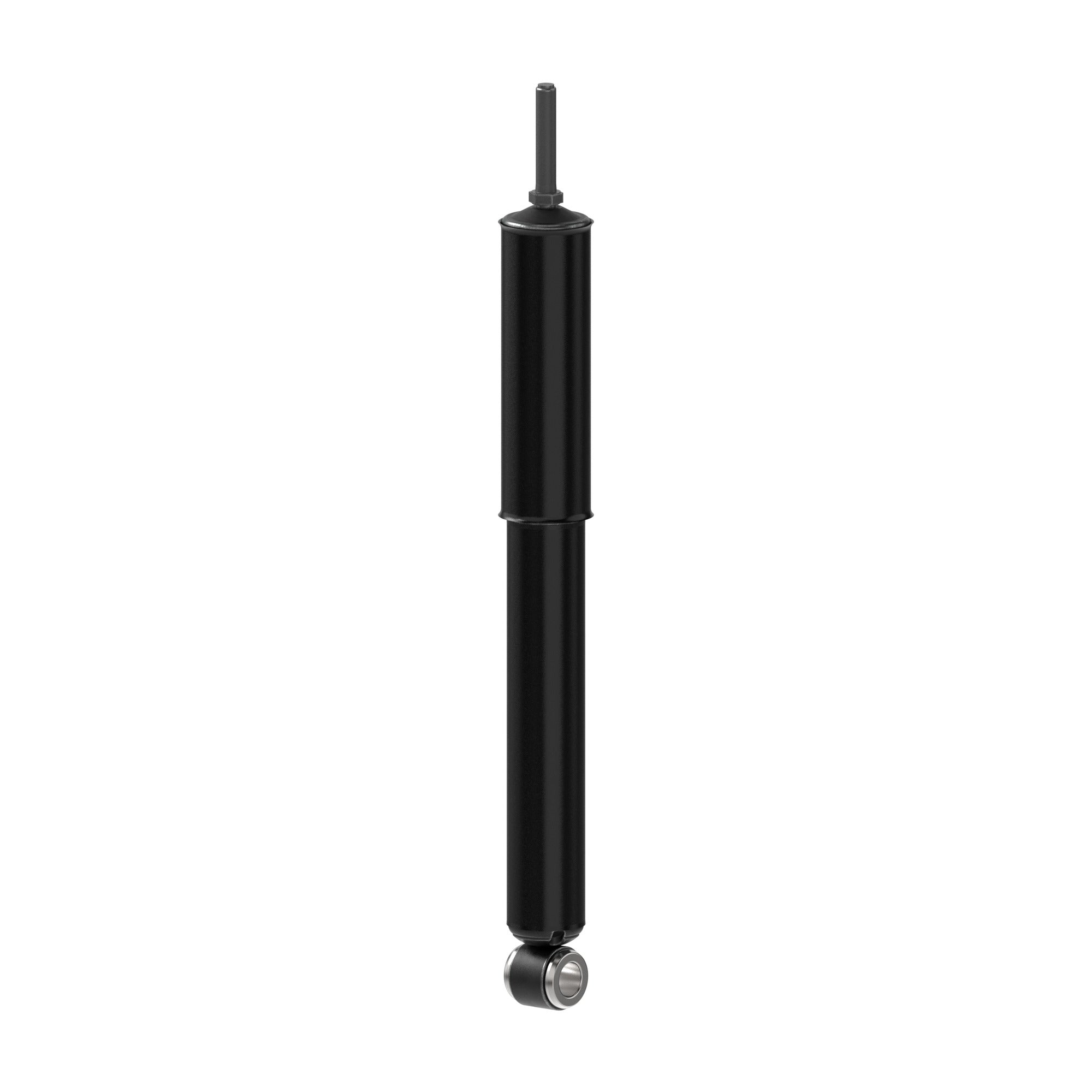

Rear Shock Absorber Black 24.06" Gas Charged for Peterbilt 362/357 & Others 1983-2017 - 65402

Part#: 12062-8317

Features and Benefits

  • Handle the demands of high mileage and severe use class 6-8 trucks and buses
  • Nitrogen gas charge maintains tire to road contact for improved ride and handling by
  • Robust hydraulic lock out prevents over extension of air bags top out of the piston and
  • Set of 10 stage valving tuned specifically to each vehicle adjusts to road extremes while
  • All weather fluid contains special additives to assist with extreme temperatures and help
  • Lower mount type of loop bushing mount - 1" bushing ID X 1.3/4" bushing oal for component

Select Alternative Part #

Warranty

Warranty Up to 3 years warranty

Please contact customer service to know more details

ColorBlack
Mounting Hardware IncludedYes
Extended Length (IN)24.06
Extended Length (MM)611.20
Lower Mount TypeLoop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Lower Mount Type_2Loop (Eyelet) Bushing
Upper Mount TypeStem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Gas ChargedYes
Compressed Length (IN)15.06
Compressed Length (MM)382.60
Travel Length (IN)9.00
Travel Length (MM)228.60
Shock Absorber Rod End Measuring PointBase Of Stem
Shock Absorber Body End Measuring PointCenter Of Loop
Body ColorBlack
Grade TypePremium
Cylinder ColorBlack
Adjustable ReboundNo
Dust Shield IncludedYes
Dust Shield MaterialMetal
Includes Bump StopNo
Upper Mount CodeS6
Lower Mount CodeL4
Hydraulic LockoutYes
Internal Rebound BumperNo
Adjustable CompressionNo
Adjustable Ride HeightNo
Active or Passive SuspensionPassive
Cylinder FinishPainted
Interchange
0307421PLUS
0307421PLUS2
0307421RTB
0307421SPL
0307424PLUS
1085311
1456033
2018471C1
202769
304629
307281
307421
307424
312724
315550
316310
316386
316387
317962
3199948
3199988
341620
341621
34185311
3915948
3919948
3919988
441601
453527C91
453528C91
47878
56101Z1030
56101Z2000
57365402
650402
650402MT
65402M
65402M0R
65402MM
65444
65444M0R
66429
680241
68024140Y
680385
680459
680586
727660
728615
74417
7593
78031MB
78039
83176231
85311
85710
89424
901974
925155
97999902633
A85311
A89424
ABPN32G900031
ABPN32O900031
AMS650402
AMS650444
AMS65402
AMS65444
AMS700404
C716002
CAHL417
DN34185311
DPM65402
E1894
E65402
E85311
E89424
EIE89424
EIEMN65402
EMN65402
EMN74417
EMN74425
EMNEMN65402
EU65402
EUE89424
EUEMN65402
EUEMN74417
EUEMN74425
EUEMNEMN65402
EUSA65402
F343368
F344353
F344355
F346598
F346599
F346633
F347215
F347303
F65402
FLF65402
FLS85311
FLSD65402
FVMAE65402
GSX89424
HD11160033
HD12150033
HD12150082
HS85311
L973
M1041
M65402
M85311
M89424
MAE65402
MBSA65402
MDSA65402
MI65402
MISA65402
MN65402
MN74417
MNEMN65402
MNEMNEMN65402
MNSA65402
MO65402
MR65402
MS65402
MS74417
MSEUEMN65402
MSMAE65402
MSMDSA65402
N65402
N74417
N74425
OTR65402
PROSH85311
R670028
S13490
SA5311
SA65402
SD65402
SSA85311
SSA89424
USA78031
VC89424
WSA0085311
ZYWSA0085311
Year Make Model Engine
2017 PETERBILT 382
2016 PETERBILT 382
2016 PETERBILT 384
2015 PETERBILT 382
2015 PETERBILT 384
2015 PETERBILT 386
2015 PETERBILT 587
2014 PETERBILT 382
2014 PETERBILT 384
2014 PETERBILT 386
2014 PETERBILT 587
2013 PETERBILT 382
2013 PETERBILT 384
2013 PETERBILT 386
2013 PETERBILT 587
2012 PETERBILT 382
2012 PETERBILT 384
2012 PETERBILT 386
2012 PETERBILT 587
2011 PETERBILT 382
2011 PETERBILT 384
2011 PETERBILT 386
2011 PETERBILT 387
2011 PETERBILT 587
2010 PETERBILT 384
2010 PETERBILT 386
2010 PETERBILT 387
2009 PETERBILT 384
2009 PETERBILT 386
2009 PETERBILT 387
2008 PETERBILT 357
2008 PETERBILT 384
2008 PETERBILT 386
2008 PETERBILT 387
2007 PETERBILT 357
2007 PETERBILT 378
2007 PETERBILT 379
2007 PETERBILT 385
2007 PETERBILT 386
2007 PETERBILT 387
2006 PETERBILT 357
2006 PETERBILT 362
2006 PETERBILT 378
2006 PETERBILT 379
2006 PETERBILT 385
2006 PETERBILT 386
2006 PETERBILT 387
2005 PETERBILT 357
2005 PETERBILT 362
2005 PETERBILT 378
2005 PETERBILT 379
2005 PETERBILT 385
2005 PETERBILT 387
2004 PETERBILT 357
2004 PETERBILT 362
2004 PETERBILT 378
2004 PETERBILT 379
2004 PETERBILT 385
2004 PETERBILT 387
2003 PETERBILT 357
2003 PETERBILT 362
2003 PETERBILT 378
2003 PETERBILT 379
2003 PETERBILT 385
2003 PETERBILT 387
2002 PETERBILT 357
2002 PETERBILT 362
2002 PETERBILT 378
2002 PETERBILT 379
2002 PETERBILT 385
2002 PETERBILT 387
2001 PETERBILT 357
2001 PETERBILT 362
2001 PETERBILT 377
2001 PETERBILT 378
2001 PETERBILT 379
2001 PETERBILT 385
2001 PETERBILT 387
2000 PETERBILT 357
2000 PETERBILT 362
2000 PETERBILT 377
2000 PETERBILT 378
2000 PETERBILT 379
2000 PETERBILT 385
2000 PETERBILT 387
1999 PETERBILT 357
1999 PETERBILT 362
1999 PETERBILT 376
1999 PETERBILT 377
1999 PETERBILT 378
1999 PETERBILT 379
1999 PETERBILT 385
1998 PETERBILT 357
1998 PETERBILT 362
1998 PETERBILT 377
1998 PETERBILT 378
1998 PETERBILT 379
1998 PETERBILT 385
1997 PETERBILT 357
1997 PETERBILT 362
1997 PETERBILT 372
1997 PETERBILT 377
1997 PETERBILT 378
1997 PETERBILT 379
1997 PETERBILT 385
1996 PETERBILT 357
1996 PETERBILT 362
1996 PETERBILT 375
1996 PETERBILT 376
1996 PETERBILT 377
1996 PETERBILT 378
1996 PETERBILT 379
1996 PETERBILT 385
1995 PETERBILT 357
1995 PETERBILT 362
1995 PETERBILT 372
1995 PETERBILT 375
1995 PETERBILT 376
1995 PETERBILT 377
1995 PETERBILT 378
1995 PETERBILT 379
1994 PETERBILT 357
1994 PETERBILT 362
1994 PETERBILT 372
1994 PETERBILT 375
1994 PETERBILT 376
1994 PETERBILT 377
1994 PETERBILT 378
1994 PETERBILT 379
1993 PETERBILT 357
1993 PETERBILT 362
1993 PETERBILT 372
1993 PETERBILT 375
1993 PETERBILT 377
1993 PETERBILT 378
1993 PETERBILT 379
1992 PETERBILT 357
1992 PETERBILT 362
1992 PETERBILT 372
1992 PETERBILT 375
1992 PETERBILT 376
1992 PETERBILT 377
1992 PETERBILT 378
1992 PETERBILT 379
1991 PETERBILT 357
1991 PETERBILT 362
1991 PETERBILT 372
1991 PETERBILT 375
1991 PETERBILT 376
1991 PETERBILT 377
1991 PETERBILT 378
1991 PETERBILT 379
1990 PETERBILT 357
1990 PETERBILT 362
1990 PETERBILT 372
1990 PETERBILT 375
1990 PETERBILT 376
1990 PETERBILT 377
1990 PETERBILT 378
1990 PETERBILT 379
1989 PETERBILT 357
1989 PETERBILT 362
1989 PETERBILT 376
1988 PETERBILT 357
1988 PETERBILT 362
1988 PETERBILT 376
1987 PETERBILT 357
1987 PETERBILT 362
1986 PETERBILT 357
1986 PETERBILT 362
1985 PETERBILT 362
1984 PETERBILT 362
1983 PETERBILT 362
Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
