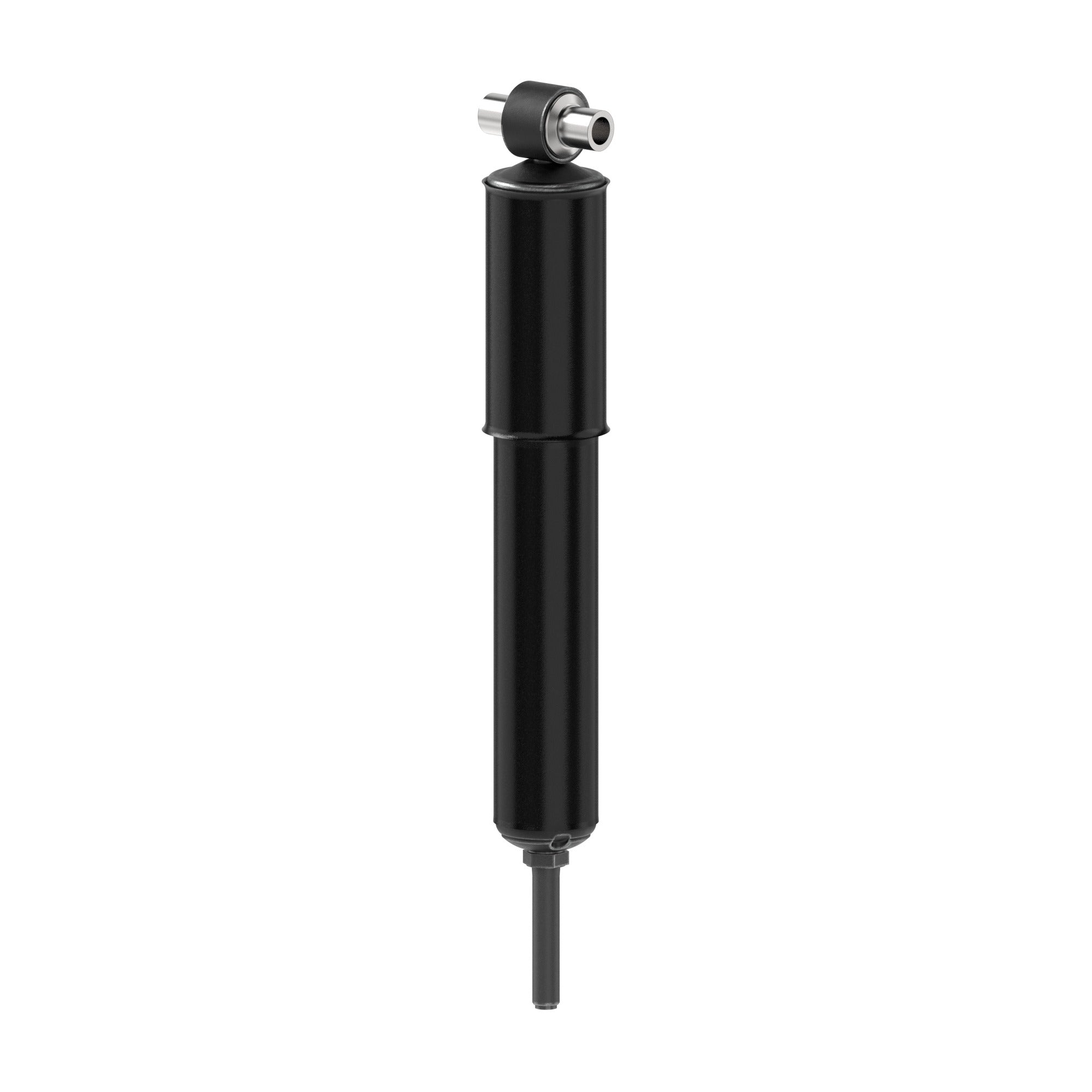

Rear Shock Absorber Black 17.86" Gas Charged - 65524
Part#: 13062-8624
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | Yes |
| Extended Length (IN) | 17.8594 |
| Extended Length (MM) | 453.60000000000002 |
| Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Lower Mount Type_2 | Stem |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 11.7969 |
| Compressed Length (MM) | 299.60000000000002 |
| Travel Length (IN) | 6.062 |
| Travel Length (MM) | 154 |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Base Of Stem |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS87 |
| Lower Mount Code | S6 |
| Hydraulic Lockout | Yes |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 1613947000PLUS |
| 1613947000PLUS2 |
| 308781 |
| 3087812 |
| 316306 |
| 316316 |
| 3199953 |
| 3915917 |
| 3919953 |
| 441600 |
| 44185936 |
| 543565524 |
| 65408 |
| 65524M |
| 65524MM |
| 65524S |
| 66432 |
| 665826 |
| 671654 |
| 671962 |
| 67196240Y |
| 671962PLUS |
| 671962SPL |
| 680473 |
| 8180139 |
| 85936 |
| 8901029 |
| 89456 |
| 89456GSK |
| 925159 |
| 925216 |
| 98031016 |
| A85936 |
| ABPN32G900058 |
| ABPN32O900058 |
| C711011 |
| C711011PLUS |
| C711011PLUS2 |
| C711011SPL |
| C711014 |
| C711017 |
| C716005 |
| F343368 |
| F343375 |
| F343376 |
| F343378 |
| F344342 |
| F344343 |
| F344353 |
| F344355 |
| F347215 |
| F347303 |
| F347306 |
| F65524 |
| FLS85936 |
| GAR85936 |
| GSX89456 |
| HD12150086 |
| HS85936 |
| M65524 |
| M85936 |
| M89456 |
| MAE65524 |
| PROSH85936 |
| S26559 |
| SA65524 |
| SSA85936 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
