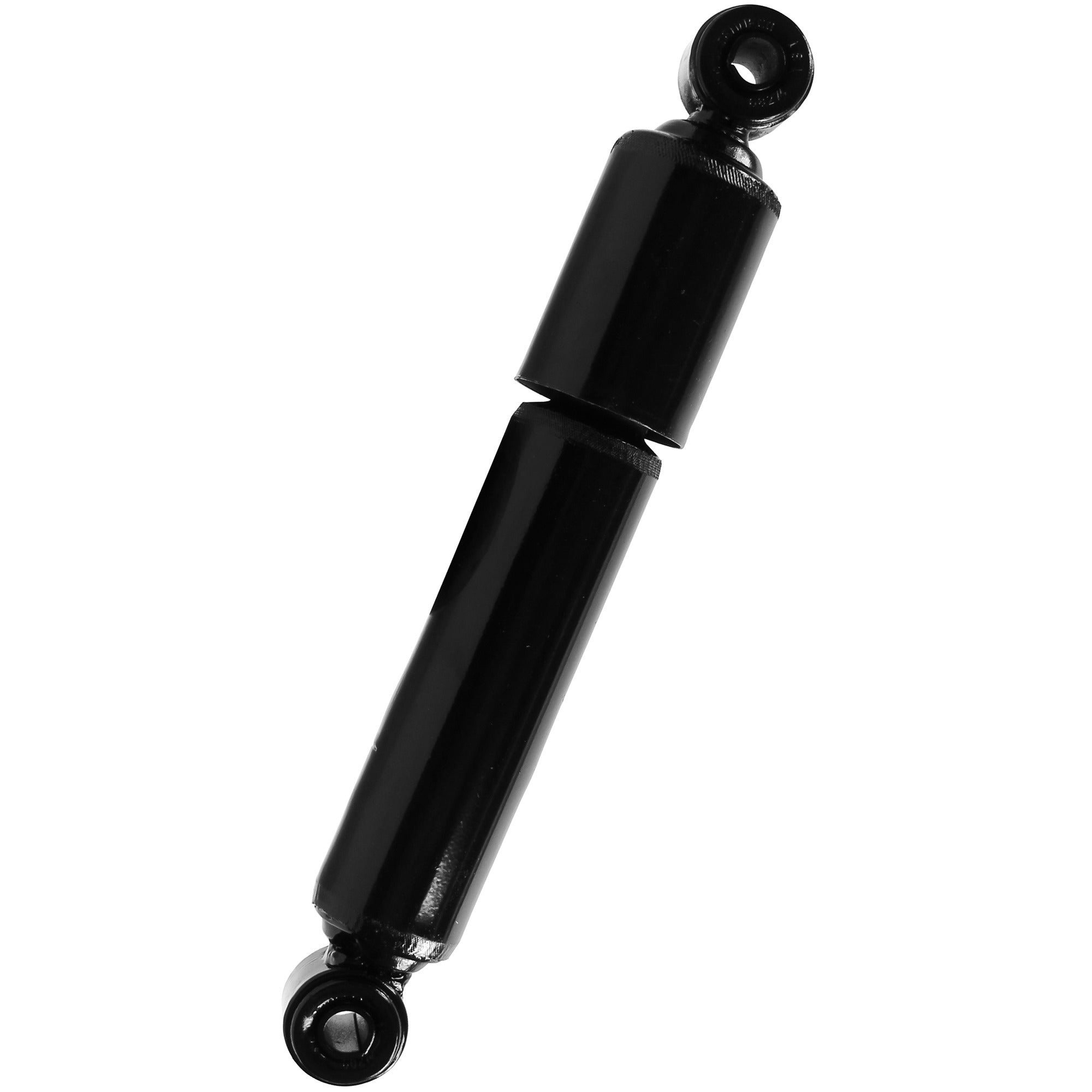

Cab Shock Absorber Black 11.58" Gas Charged - 66159
Part#: 13063-8119
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 11.58 |
| Extended Length (MM) | 294.10000000000002 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 34.93MM Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 8.47 |
| Compressed Length (MM) | 215.099999999999994 |
| Travel Length (IN) | 3.09 |
| Travel Length (MM) | 78.5 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS24 |
| Lower Mount Code | LS24 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 12011264 |
| 12021064 |
| 12021164 |
| 12021264 |
| 1202K065 |
| 1202K164 |
| 1202K264 |
| 316826 |
| 316827 |
| 44183031 |
| 5000859 |
| 543566159 |
| 654849 |
| 66159M0R |
| 66159MM |
| 82783031 |
| 83002 |
| 83024 |
| 83031 |
| 925242 |
| A83031 |
| ABPN32G900063 |
| ABPN32O900063 |
| AMA83031 |
| E83031 |
| F347252 |
| F347257 |
| F347293 |
| F347295 |
| F66159 |
| GAR83031 |
| HD12130652 |
| M66159 |
| M83031 |
| MAE66159 |
| S27886 |
| SA66159 |
| SH66159 |
| SSA83031 |
| T711000 |
| T711001 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
