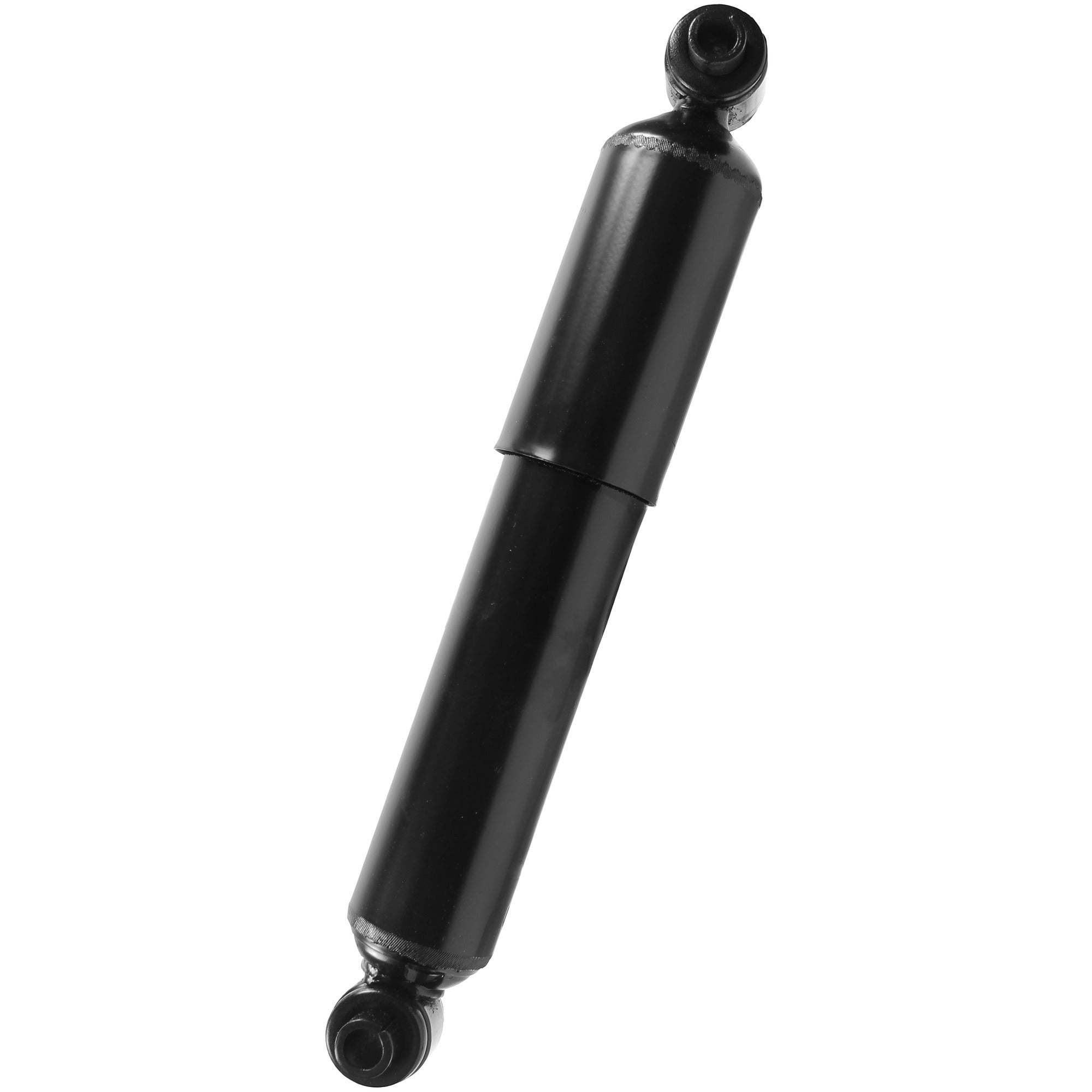

Cab Shock Absorber Black 13.42" Gas Charged - 66201
Part#: 13063-1324
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 13.42 |
| Extended Length (MM) | 340.89999999999998 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 2.7/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 9.6 |
| Compressed Length (MM) | 243.80000000000001 |
| Travel Length (IN) | 3.82 |
| Travel Length (MM) | 97 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Upper Mount Code | LS77 |
| Lower Mount Code | LS34 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 925033 |
| A83081 |
| A99769 |
| F347204 |
| F347222 |
| F347255 |
| F347275 |
| F347299 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
