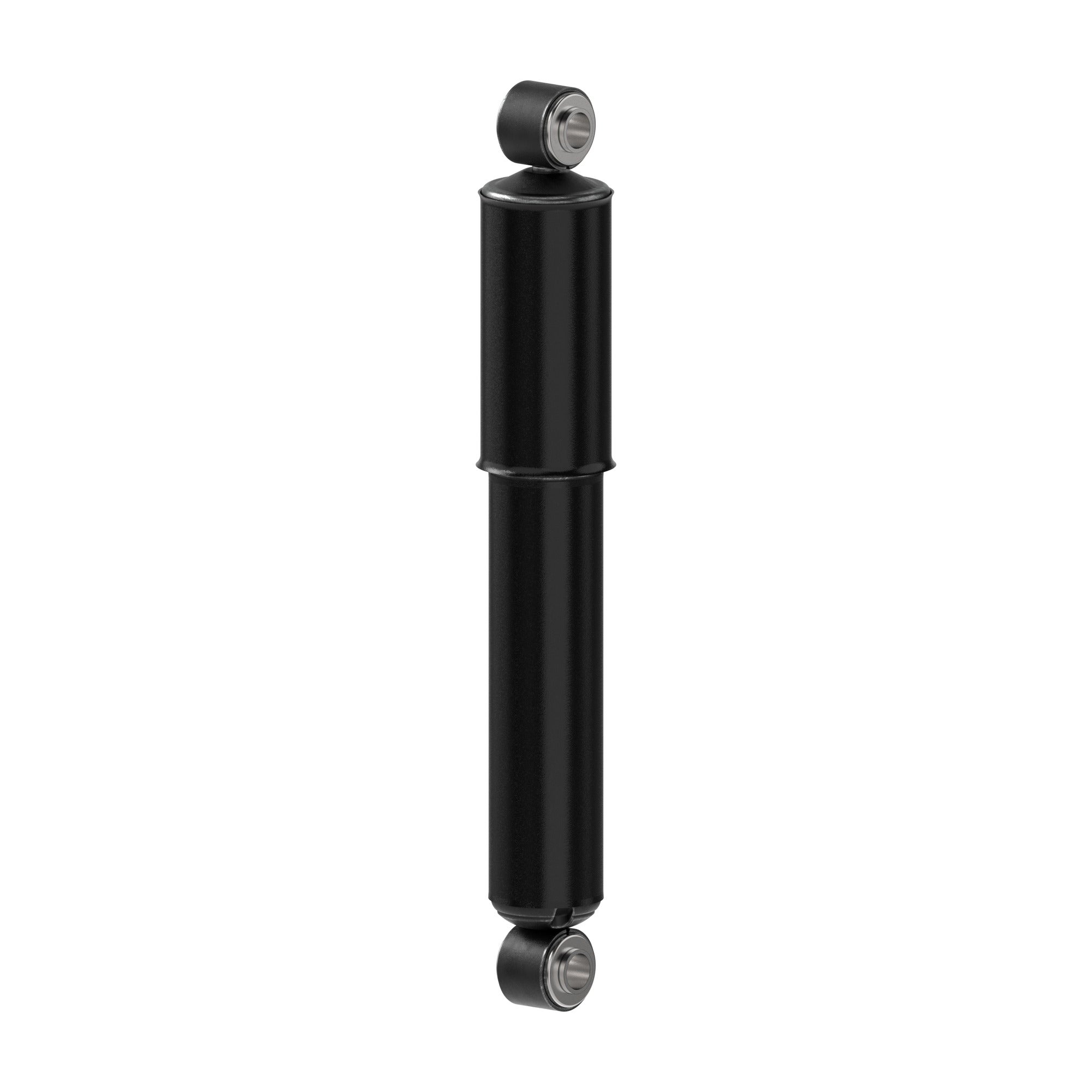

Rear Shock Absorber Black 17.75" Gas Charged - 65416
Part#: 1M062-8607
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 17.75 |
| Extended Length (MM) | 450.80000000000001 |
| Lower Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing And Sleeve |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 11.99 |
| Compressed Length (MM) | 304.5 |
| Travel Length (IN) | 5.76 |
| Travel Length (MM) | 146.30000000000001 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS54 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | Yes |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 090208CD |
| 1013051001 |
| 1013776000 |
| 1013859000 |
| 10147 |
| 10147HD |
| 1083203 |
| 1085005 |
| 1085300 |
| 1089000 |
| 1091367 |
| 1250563B000 |
| 1253069B000 |
| 1266009B000 |
| 1270563B000 |
| 1270563B003 |
| 1288503 |
| 1360386MTM |
| 1431085MTM |
| 1491909MTM |
| 14QK2108 |
| 15654261 |
| 1583470 |
| 1614759000 |
| 16327 |
| 16653 |
| 16773 |
| 16778 |
| 1735801 |
| 1880001 |
| 20273541 |
| 202735414 |
| 20273544 |
| 2029200C91 |
| 24233099 |
| 2439201 |
| 25621810 |
| 280499 |
| 290460 |
| 315399 |
| 315546 |
| 315552 |
| 341617 |
| 341625 |
| 341626 |
| 345604 |
| 345607 |
| 345613 |
| 345617 |
| 345618 |
| 346604 |
| 3919572 |
| 3919913 |
| 3919959 |
| 410040 |
| 410056 |
| 434237 |
| 434277 |
| 436028 |
| 436118 |
| 438013 |
| 441850005416 |
| 471000000000 |
| 471700005079 |
| 472000000000 |
| 4940627 |
| 5089 |
| 510017 |
| 5170500123 |
| 5170511020 |
| 5170580520 |
| 5170580820 |
| 524125 |
| 53059 |
| 5348631 |
| 55013 |
| 5559363 |
| 557012 |
| 57306893 |
| 57365416 |
| 57366893 |
| 57639 |
| 58049 |
| 58049MB |
| 58059 |
| 59019 |
| 59030 |
| 600104MT |
| 601104 |
| 6046 |
| 61310232 |
| 650416 |
| 650416MT |
| 651056 |
| 65351101 |
| 65416M |
| 65416M0R |
| 65416MM |
| 65419 |
| 65419M0R |
| 65458 |
| 654907 |
| 654951 |
| 659300 |
| 660104MT |
| 661104 |
| 665133 |
| 665197 |
| 665246 |
| 665531 |
| 665533 |
| 665536 |
| 66554540Y |
| 665568 |
| 665724 |
| 665746 |
| 665756 |
| 665766 |
| 665788 |
| 6657882 |
| 665813 |
| 665862 |
| 665950 |
| 66634 |
| 66893 |
| 671707 |
| 671948 |
| 680341 |
| 680467 |
| 680509 |
| 680565 |
| 680568 |
| 680571 |
| 680591 |
| 680616 |
| 680702 |
| 680756 |
| 6893 |
| 6896 |
| 69670 |
| 69672 |
| 69715 |
| 69732 |
| 6KP857MTM |
| 70642 |
| 70654 |
| 727603 |
| 78013 |
| 8160090 |
| 8160119 |
| 8180262 |
| 83128 |
| 83130 |
| 83176211 |
| 83203 |
| 83389 |
| 841168 |
| 85000 |
| 85005 |
| 85029 |
| 85030 |
| 85043 |
| 85051 |
| 85067 |
| 85137420 |
| 85300 |
| 85323 |
| 85738 |
| 85934 |
| 881540 |
| 881639 |
| 881644 |
| 8901020 |
| 8901025 |
| 8901030 |
| 890120 |
| 890414 |
| 890449 |
| 89419 |
| 89430 |
| 89436 |
| 89440 |
| 90044008 |
| 90044071 |
| 90044081 |
| 90044086 |
| 90044095 |
| 90044162 |
| 90044448 |
| 90044626 |
| 90044977 |
| 90044981 |
| 90044982 |
| 90044991 |
| 90044992 |
| 90045054 |
| 90045299 |
| 90045575 |
| 90045666 |
| 90045669 |
| 901907SP1 |
| 90208 |
| 902396SP1 |
| 9160500 |
| 925271 |
| 942300 |
| 98583019 |
| A10023 |
| A11931 |
| A14583 |
| A16135 |
| A1667 |
| A1668 |
| A20002 |
| A20126 |
| A20889 |
| A21553 |
| A2232 |
| A85000 |
| ABPN32G900002 |
| ABPN32G900011 |
| ABPN32G900028 |
| ABPN32G900082 |
| ABPN32O900002 |
| ABPN32O900011 |
| ABPN32O900028 |
| ABPN32O900082 |
| AMS600104 |
| AMS650416 |
| AMS650419 |
| AMS65416 |
| AMS65419 |
| AMS660104 |
| AR1434 |
| AR2451 |
| AR718C |
| AR718CHD |
| AR781 |
| AS563B |
| B21832 |
| B22715 |
| B23013 |
| B23014 |
| B23566 |
| B24023 |
| B24088 |
| B24125 |
| B24577 |
| B26652 |
| B29432 |
| C0062D |
| C0078 |
| CAX893 |
| DPM65416 |
| E83203 |
| E85000 |
| E89436 |
| EMN65416 |
| EU65416 |
| EUEMN65416 |
| EUSA65416 |
| F344342 |
| F344343 |
| F347215 |
| F347216 |
| F347264 |
| F65416 |
| FLF65416 |
| FLL8500007I |
| FLS85000 |
| GSX89436 |
| H5320415006 |
| HD12150039 |
| HENS20002 |
| HENS23566 |
| HENS24088 |
| HS85000 |
| HTA200002 |
| HTA20002 |
| HTS20002 |
| HTS23566 |
| HTSS20002 |
| HTSS23566 |
| L57639 |
| L59019 |
| M65416 |
| M65419 |
| M66634 |
| M66893 |
| M83203 |
| M85000 |
| M85323 |
| M89436 |
| MAE65416 |
| MI65416 |
| MISA65416 |
| MN65416 |
| MNEMN65416 |
| MNSA65416 |
| MO65416 |
| MON65416 |
| MS65416 |
| N65416 |
| NEW90045299 |
| NS500699 |
| OTR65416 |
| PROSH85000 |
| RCSA3203 |
| RCSA5000 |
| S14583 |
| S1667 |
| S1668 |
| S20001 |
| S20002 |
| S20126 |
| S20889 |
| S21533 |
| S21832 |
| S2230 |
| S2232 |
| S22715 |
| S23013 |
| S23014 |
| S23566 |
| S24023 |
| S24088 |
| S24125 |
| S24577 |
| S26652 |
| S29432 |
| S6009B |
| SA5000 |
| SA5323 |
| SA65416 |
| SSA83203 |
| SSA85000 |
| TR85000 |
| UCD6216001 |
| UCD62161 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
