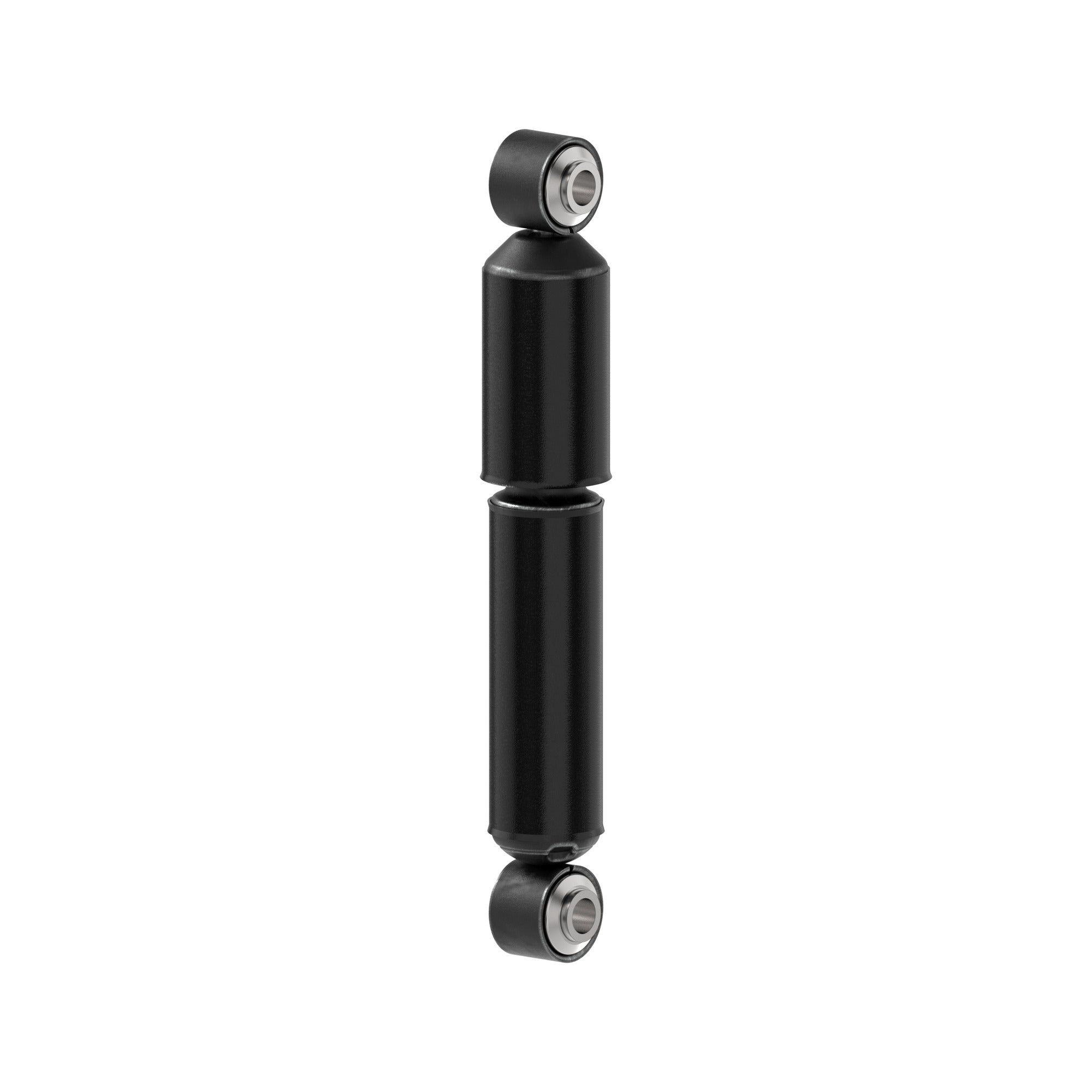

Cab Shock Absorber Black 13.12" Gas Charged for Peterbilt 379/357 & Others 1986-2024 - 66145

Cab Shock Absorber Black 13.12" Gas Charged for Peterbilt 379/357 & Others 1986-2024 - 66145

Part#: 12063-8624

Features and Benefits

Handle the demands of high mileage and severe use vehicles with cab suspensions
Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for
Set of 10 stage valving tuned specifically to each vehicle adjusts to road extremes while
Bearing with ptfe coating reduces friction between rod and rod guide combined with
All weather fluid contains special additives to assist with extreme temperatures and help
Lower mount type of loop bushing and sleeve mount - 5/8"-0.63" sleeve ID X 1.3/8" sleeve

Select Alternative Part #

66145

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Color	Black
Mounting Hardware Included	No
Extended Length (IN)	13.13
Extended Length (MM)	333.40
Lower Mount Type	Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.3/8" Sleeve OAL
Lower Mount Type	Loop (Eyelet) Bushing and Sleeve
Upper Mount Type	Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 1.3/8" Sleeve OAL
Gas Charged	Yes
Compressed Length (IN)	9.13
Compressed Length (MM)	231.80
Travel Length (IN)	4.00
Travel Length (MM)	101.60
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop
Body Color	Black
Grade Type	Premium
Adjustable Rebound	No
Dust Shield Included	Yes
Dust Shield Material	Metal
Includes Bump Stop	No
Upper Mount Code	LS79
Lower Mount Code	LS79
Hydraulic Lockout	No
Internal Rebound Bumper	No
Adjustable Compression	No
Adjustable Ride Height	No
Active or Passive Suspension	Passive
Cylinder Finish	Painted

Interchange

111856
1227B106
1227X102
12426
141132H
179315
19110607
2091111
2295
2296
2364
23685
2902455
317535
44183008
4484836
54241
57366645
6145
6354
654782
66145M
66645
72051MB
82145
83008
83008HSK
8L8Z8260A
9160546
925001
98030000
A1227A105
A83008
ABPN32G900055
ABPN32O900055
AMS660200
AMS66145
B716007
B716007PLUS
CS66145
CV5044C
DPM66145
E2296
EMN66145
EMN66645
EU66645
EUEMN66145
EUEMN66645
EUSA66145
EV224
EV239A
EV250A
F347204
F347275
F5RZ6A666A
F66145
F7RZ6A666AB
FLF66145
FLS83008
FV349
GAR83008
HD12140546
HS83008
HV179
HV197
JV224
L1331
M1956
M66145
M83008
MI66145
MISA66145
MISA66645
MN66145
MN66645
MNEMN66645
MNSA66145
N66145
N66645
P239
P250A
PC266
PCV1261DL
PCV151
PCV205
PCV329
PCV332
PROSH83008
PT3784
PV224
PV239
PV250A
R002296
R716007
RCP33008HD
RT83008
S26543
SA3008
SA66145
SA66645
V224
V296
V317
V364
VC83008
YF0913890
YS4Z6A666BA

Year	Make	Model

2024	PETERBILT	389
2023	PETERBILT	389
2022	PETERBILT	389
2021	PETERBILT	389
2020	PETERBILT	367
2020	PETERBILT	389
2019	PETERBILT	367
2019	PETERBILT	389
2018	PETERBILT	367
2018	PETERBILT	389
2017	PETERBILT	367
2017	PETERBILT	389
2016	PETERBILT	367
2016	PETERBILT	386
2016	PETERBILT	389
2015	PETERBILT	367
2015	PETERBILT	386
2015	PETERBILT	388
2015	PETERBILT	389
2014	PETERBILT	367
2014	PETERBILT	386
2014	PETERBILT	388
2014	PETERBILT	389
2013	PETERBILT	367
2013	PETERBILT	386
2013	PETERBILT	388
2013	PETERBILT	389
2012	PETERBILT	367
2012	PETERBILT	386
2012	PETERBILT	388
2012	PETERBILT	389
2011	PETERBILT	367
2011	PETERBILT	386
2011	PETERBILT	388
2011	PETERBILT	389
2010	PETERBILT	367
2010	PETERBILT	386
2010	PETERBILT	388
2010	PETERBILT	389
2009	PETERBILT	367
2009	PETERBILT	386
2009	PETERBILT	388
2009	PETERBILT	389
2008	PETERBILT	367
2008	PETERBILT	386
2008	PETERBILT	388
2008	PETERBILT	389
2007	PETERBILT	357
2007	PETERBILT	378
2007	PETERBILT	379
2007	PETERBILT	386
2006	PETERBILT	357
2006	PETERBILT	378
2006	PETERBILT	379
2006	PETERBILT	386
2005	PETERBILT	357
2005	PETERBILT	378
2005	PETERBILT	379
2004	PETERBILT	357
2004	PETERBILT	378
2004	PETERBILT	379
2003	PETERBILT	357
2003	PETERBILT	378
2003	PETERBILT	379
2002	PETERBILT	357
2002	PETERBILT	378
2002	PETERBILT	379
2001	PETERBILT	357
2001	PETERBILT	377
2001	PETERBILT	378
2001	PETERBILT	379
2000	PETERBILT	357
2000	PETERBILT	377
2000	PETERBILT	378
2000	PETERBILT	379
1999	PETERBILT	357
1999	PETERBILT	376
1999	PETERBILT	377
1999	PETERBILT	378
1999	PETERBILT	379
1998	PETERBILT	357
1998	PETERBILT	377
1998	PETERBILT	378
1998	PETERBILT	379
1997	PETERBILT	357
1997	PETERBILT	377
1997	PETERBILT	378
1997	PETERBILT	379
1996	PETERBILT	357
1996	PETERBILT	375
1996	PETERBILT	376
1996	PETERBILT	377
1996	PETERBILT	378
1996	PETERBILT	379
1995	PETERBILT	357
1995	PETERBILT	375
1995	PETERBILT	376
1995	PETERBILT	377
1995	PETERBILT	378
1995	PETERBILT	379
1994	PETERBILT	357
1994	PETERBILT	375
1994	PETERBILT	376
1994	PETERBILT	377
1994	PETERBILT	378
1994	PETERBILT	379
1993	PETERBILT	357
1993	PETERBILT	375
1993	PETERBILT	377
1993	PETERBILT	378
1993	PETERBILT	379
1992	PETERBILT	357
1992	PETERBILT	375
1992	PETERBILT	376
1992	PETERBILT	377
1992	PETERBILT	378
1992	PETERBILT	379
1991	PETERBILT	357
1991	PETERBILT	375
1991	PETERBILT	376
1991	PETERBILT	377
1991	PETERBILT	378
1991	PETERBILT	379
1990	PETERBILT	357
1990	PETERBILT	375
1990	PETERBILT	376
1990	PETERBILT	377
1990	PETERBILT	378
1990	PETERBILT	379
1989	PETERBILT	375
1989	PETERBILT	376
1989	PETERBILT	377
1989	PETERBILT	379
1988	PETERBILT	375
1988	PETERBILT	376
1988	PETERBILT	377
1988	PETERBILT	379
1987	PETERBILT	375
1987	PETERBILT	377
1987	PETERBILT	379
1986	PETERBILT	379

Designed to handle the demands of high mileage and severe use vehicles with cab suspensions Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
