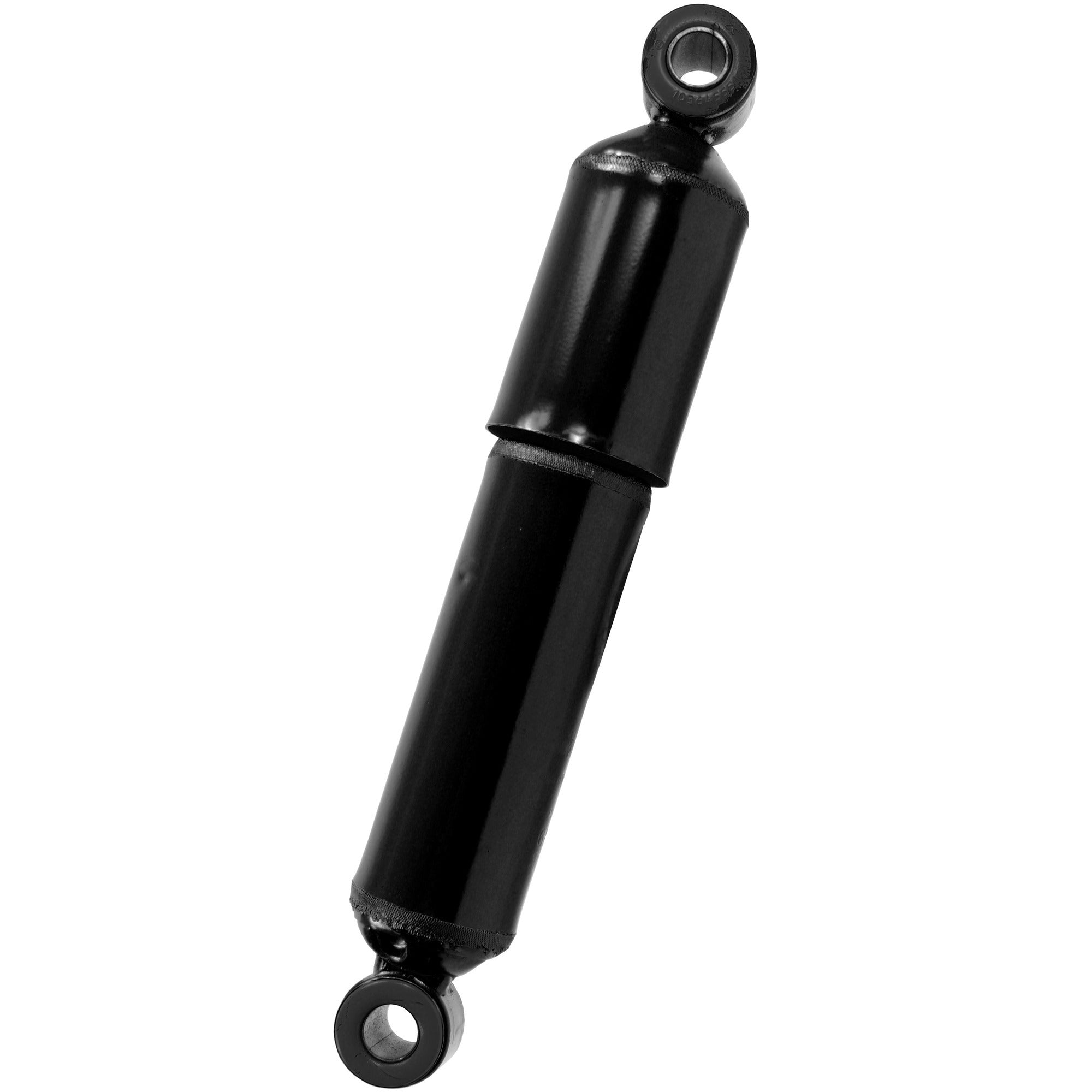

Cab Shock Absorber Black 11.96" Gas Charged - 66102
Part#: 12063-0818
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 11.96 |
| Extended Length (MM) | 303.80000000000001 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.3/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 1.3/8" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 8.56 |
| Compressed Length (MM) | 217.40000000000001 |
| Travel Length (IN) | 3.4 |
| Travel Length (MM) | 86.40000000000001 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Includes Bump Stop | Yes |
| Upper Mount Code | LS79 |
| Lower Mount Code | LS79 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 12402 |
| 2019140 |
| 20448S |
| 2092316 |
| 23032 |
| 5001272 |
| 5402 |
| 6228 |
| 65463 |
| 66102MM |
| 700715 |
| 83059 |
| 83063 |
| 916203 |
| 925368 |
| 98030004 |
| A26184 |
| A83059 |
| AXA000408001 |
| AXA04081 |
| AXA4081 |
| CS66102 |
| E1561 |
| FV319 |
| HD12140637 |
| L1893 |
| L893 |
| M1051 |
| M66102 |
| MAE66102 |
| N10164 |
| PP1058870 |
| PT38004 |
| R001561 |
| R716006 |
| WA075095 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
