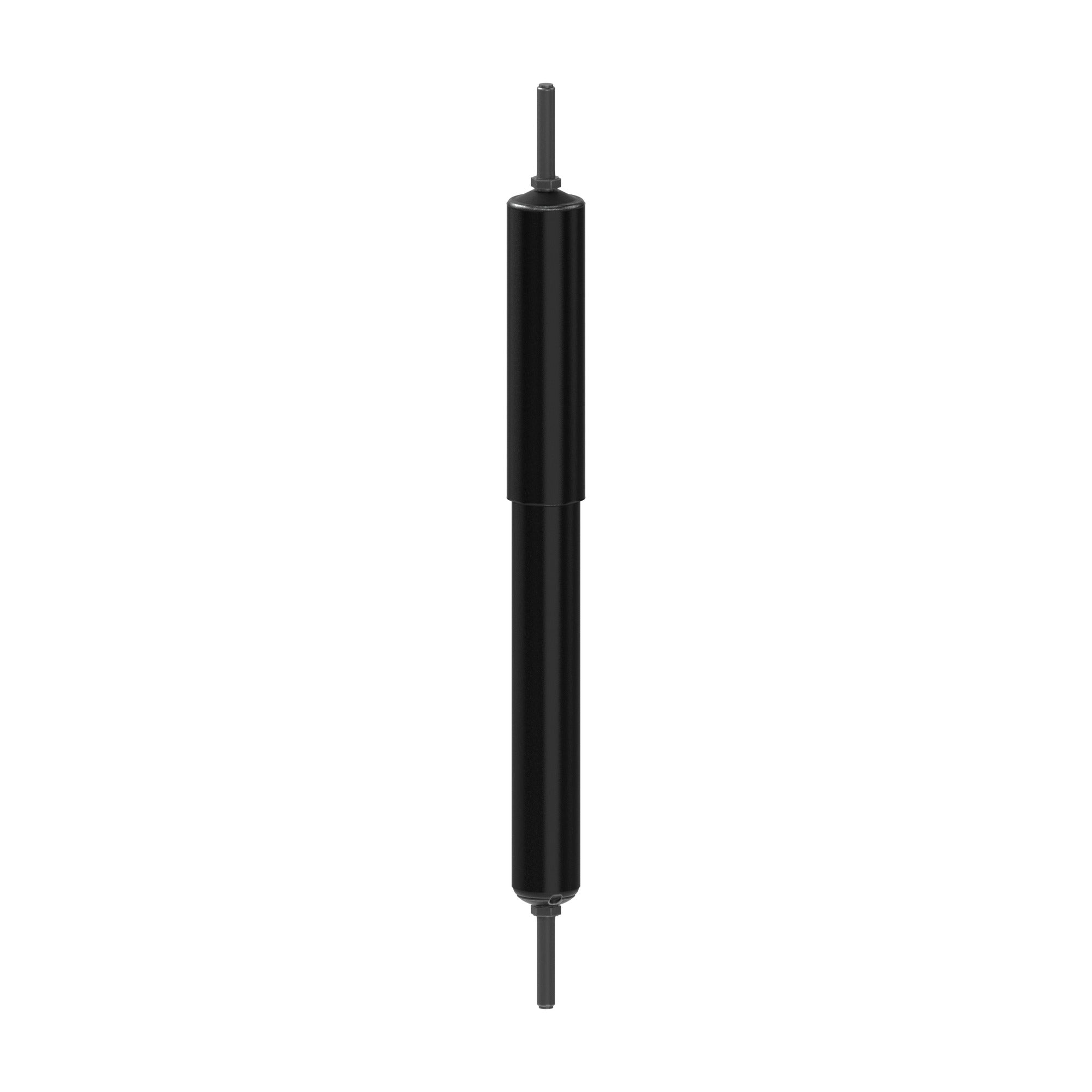

Rear Shock Absorber Black 26.00" Gas Charged - 65468
Part#: 1M062-9722
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | Yes |
| Extended Length (IN) | 26 |
| Extended Length (MM) | 660.39999999999998 |
| Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Lower Mount Type_2 | Stem |
| Upper Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Gas Charged | Yes |
| Compressed Length (IN) | 15.625 |
| Compressed Length (MM) | 396.89999999999998 |
| Travel Length (IN) | 10.375 |
| Travel Length (MM) | 263.5 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Base Of Stem |
| Shock Absorber Body End Measuring Point | Base Of Stem |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | S6 |
| Lower Mount Code | S6 |
| Hydraulic Lockout | Yes |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Extended Length (IN) | 32.7344 |
| Extended Length (MM) | 831.5 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 10mm Sleeve ID X 1 3/16" Sleeve OAL |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 10mm Sleeve ID X 1 3/16" Sleeve OAL |
| Compressed Length (IN) | 19.7188 |
| Compressed Length (MM) | 500.89999999999998 |
| Travel Length (IN) | 13.015000000000001 |
| Travel Length (MM) | 330.60000000000002 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Dust Shield Included | No |
| Upper Mount Code | LS125 |
| Lower Mount Code | LS125 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | Yes |
| Interchange |
|---|
| 105103 |
| 1229F708 |
| 12463 |
| 14033 |
| 15642863 |
| 170243 |
| 22064805 |
| 308781 |
| 3087812 |
| 316312 |
| 316824 |
| 341619 |
| 341620 |
| 345606 |
| 38874 |
| 410046 |
| 441850695468 |
| 508781 |
| 53010 |
| 53065 |
| 555019 |
| 58097MB |
| 6209 |
| 65468M |
| 65468M0R |
| 65468MM |
| 65528 |
| 65528M0R |
| 66109 |
| 66434 |
| 665826 |
| 665844 |
| 666 |
| 671091 |
| 69685 |
| 700121 |
| 74081 |
| 8160120 |
| 8220648050 |
| 8220648060 |
| 8220648070 |
| 83136 |
| 83176227 |
| 85069 |
| 85328 |
| 881419 |
| 89455 |
| 916201 |
| 9180147 |
| 9180188 |
| 925124 |
| 93223284 |
| 93327427 |
| 98031001 |
| A85069 |
| ABPN32G900038 |
| ABPN32O900038 |
| AMS650468 |
| AMS65468 |
| AMS65528 |
| C711011 |
| C711011PLUS |
| C711011PLUS2 |
| C711011RTB |
| C711011SPL |
| C711017 |
| C716005 |
| C716005PLUS |
| CS66109 |
| DPM65468 |
| E619 |
| F1247 |
| F343368 |
| F344353 |
| F344355 |
| F346598 |
| F346599 |
| F346633 |
| F347215 |
| F347303 |
| F65528 |
| FLS85069 |
| GSX89455 |
| HD12150031 |
| HD12150076 |
| HS85069 |
| L12713 |
| L211 |
| M650 |
| M65468 |
| M65528 |
| M85069 |
| M89455 |
| MAE65468 |
| MISA65468 |
| OTR65468 |
| PROSH85069 |
| SA5069 |
| SA55032 |
| SA65468 |
| SA74081 |
| SMR560429 |
| SSA85069 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
