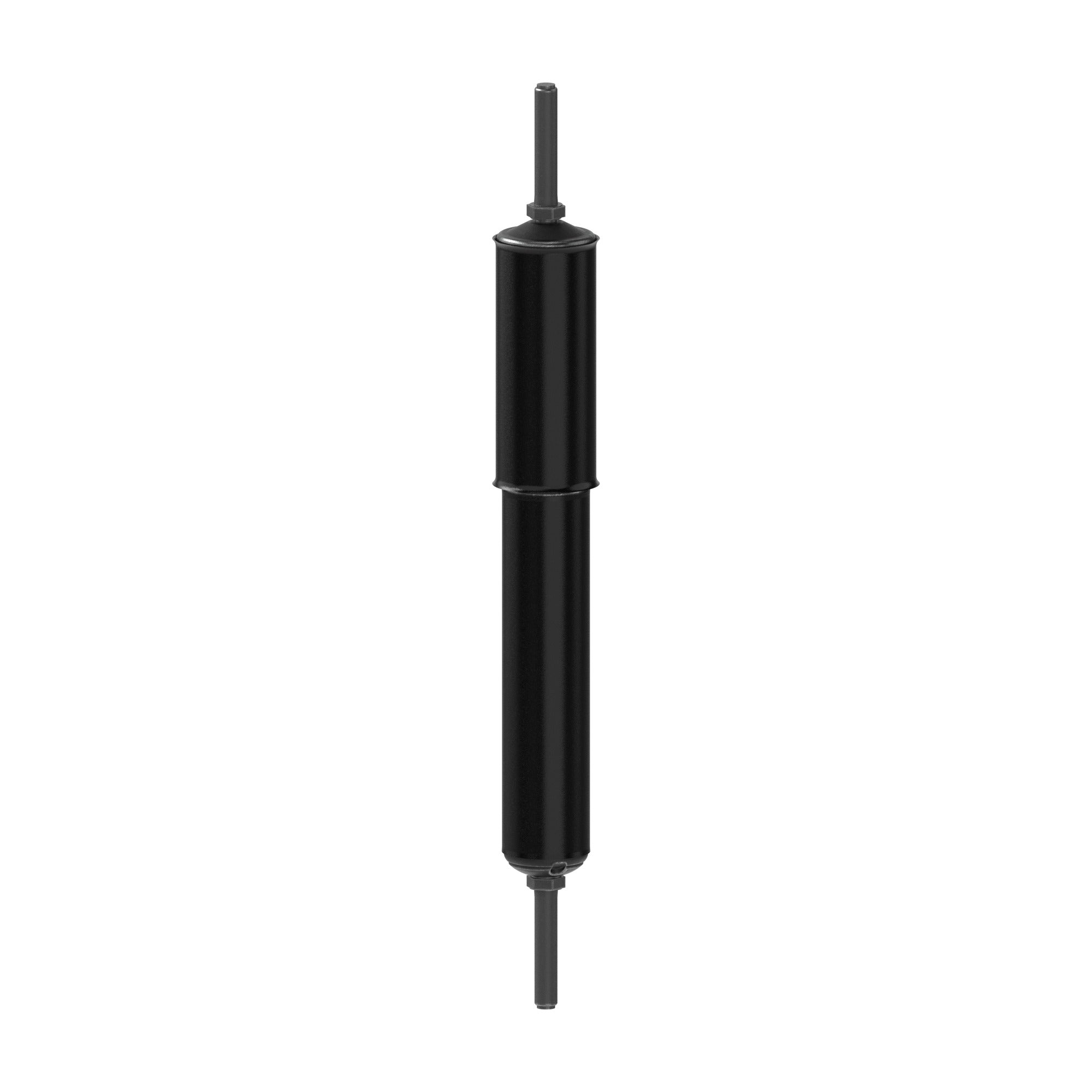

Rear Shock Absorber Black 18.79" Gas Charged - 65404
Part#: 1M062-9618
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | Yes |
| Extended Length (IN) | 18.79 |
| Extended Length (MM) | 477.30000000000001 |
| Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Lower Mount Type_2 | Stem |
| Upper Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Gas Charged | Yes |
| Compressed Length (IN) | 12.0099999999999998 |
| Compressed Length (MM) | 305.10000000000002 |
| Travel Length (IN) | 6.78 |
| Travel Length (MM) | 172.19999999999999 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Base Of Stem |
| Shock Absorber Body End Measuring Point | Base Of Stem |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | S6 |
| Lower Mount Code | S6 |
| Hydraulic Lockout | Yes |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 1091379 |
| 304628 |
| 307420 |
| 3082285 |
| 315551 |
| 3199949 |
| 3199980 |
| 3200070 |
| 341624 |
| 3919949 |
| 3919994 |
| 410042 |
| 441600 |
| 44185310 |
| 53041 |
| 5404 |
| 57365404 |
| 650404 |
| 650404MT |
| 65404M |
| 65404M0R |
| 65404MM |
| 66424 |
| 665902 |
| 665906 |
| 665945 |
| 665950 |
| 680239 |
| 680458 |
| 680476 |
| 680486 |
| 69717 |
| 728614 |
| 74409 |
| 7554 |
| 78005 |
| 78077MB |
| 83176230 |
| 85310 |
| 85326 |
| 85336 |
| 85902 |
| 8901027 |
| 89423 |
| 90013787 |
| 901577SP1 |
| 902478 |
| 925154 |
| A85310 |
| A85326 |
| ABPN32G900034 |
| ABPN32O900034 |
| AMS650404 |
| AMS65404 |
| AMS66424 |
| AMS700402 |
| CAHL409 |
| DN34185310 |
| DN34189423 |
| DPM65404 |
| E2153 |
| E65404 |
| E85310 |
| E89423 |
| ECEMN65404 |
| EIE89423 |
| EIEMN65404 |
| EMN65404 |
| EMN74409 |
| EMNEMN65404 |
| EU65404 |
| EUE89423 |
| EUEMN65404 |
| EUEMN74409 |
| EUEMNEMN65404 |
| EUSA65404 |
| F343368 |
| F343375 |
| F343376 |
| F343378 |
| F344342 |
| F344343 |
| F344353 |
| F344355 |
| F346598 |
| F346599 |
| F346633 |
| F347215 |
| F347303 |
| F347306 |
| F65404 |
| FLF65404 |
| FLS85310 |
| FLSD65404 |
| FVMAE65404 |
| GSX89423 |
| HD12140609 |
| HD12150085 |
| HS85310 |
| K37429 |
| K374292 |
| K37429PLUS |
| K37429PLUS2 |
| K37432 |
| K374322 |
| K3747 |
| K37487 |
| K3749 |
| K374C7 |
| L975 |
| M1034 |
| M65404 |
| M85310 |
| M85326 |
| M89423 |
| MAE65404 |
| MBSA65404 |
| MI65404 |
| MISA65404 |
| MN65404 |
| MN74409 |
| MNEMN65404 |
| MNEMNEMN65404 |
| MNSA65404 |
| MO65404 |
| MS65404 |
| MS74409 |
| N65404 |
| N74409 |
| NW65404 |
| PROSH85310 |
| R670011 |
| RCSA5310 |
| SA5310 |
| SA65404 |
| SD65404 |
| SMR560414 |
| SSA85310 |
| SSA85902 |
| TR85310 |
| TX651097 |
| VC89423 |
| WA0185902 |
| WSA0085310 |
| ZYWSA0085310 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
