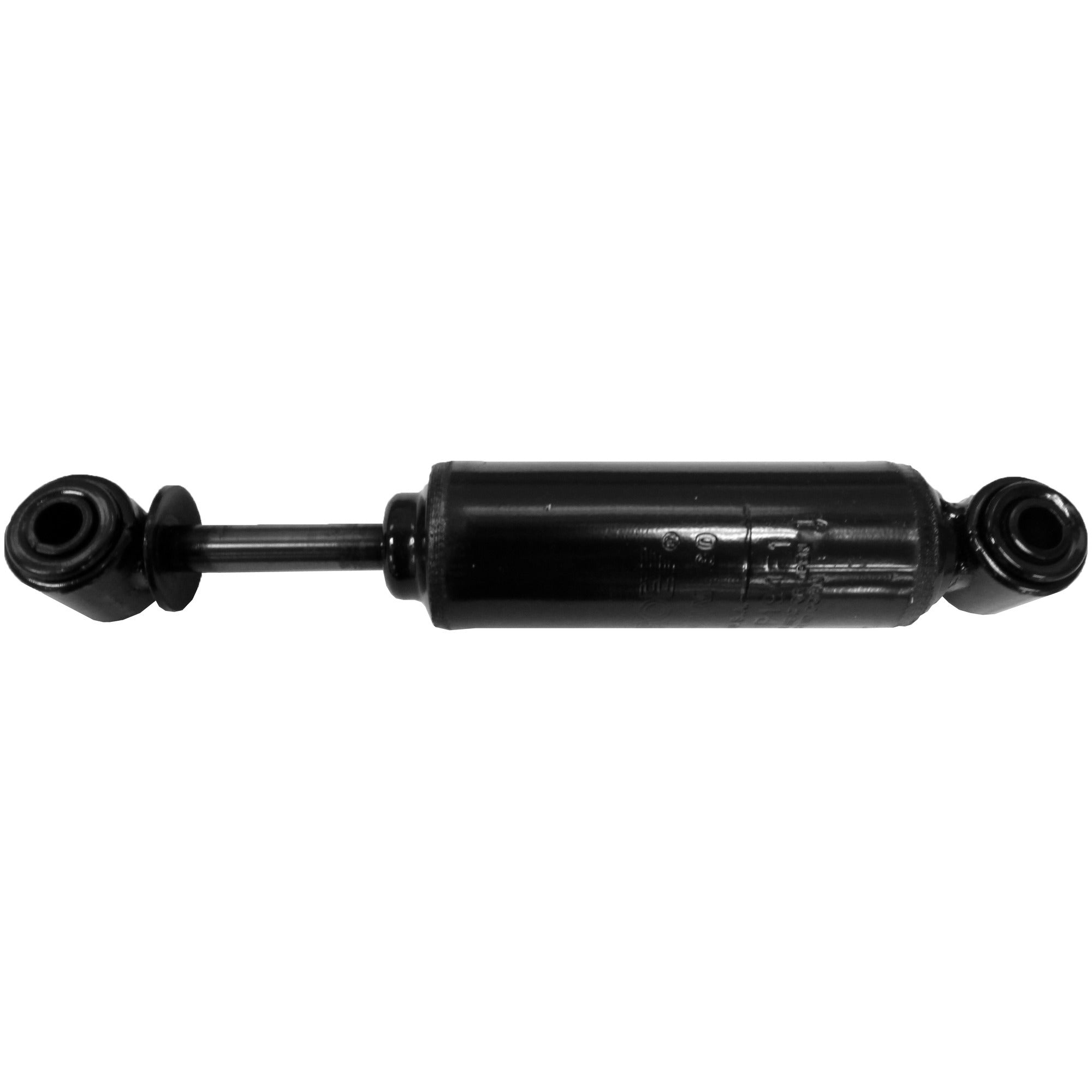

Cab Shock Absorber Black 9.38" Gas Charged - 66104
Part#: 1M063-8108
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 9.375 |
| Extended Length (MM) | 238.099999999999994 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.3/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.3/8" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 7.25 |
| Compressed Length (MM) | 184.099999999999994 |
| Travel Length (IN) | 2.125 |
| Travel Length (MM) | 54 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Adjustable Rebound | No |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Upper Mount Code | LS14 |
| Lower Mount Code | LS14 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 12010054 |
| 12011046 |
| 12020052 |
| 12020054 |
| 12021046 |
| 1202K046 |
| 179345 |
| 1831476000 |
| 2256 |
| 23196 |
| 2508326C1 |
| 26545X |
| 26565X |
| 316825 |
| 43139 |
| 43145 |
| 44183021 |
| 64417 |
| 654669 |
| 654833 |
| 654841 |
| 66104MM |
| 8160523 |
| 82104 |
| 83020 |
| 83021 |
| 83049 |
| 87268250 |
| 8977866804 |
| 925006 |
| A83020 |
| A83021 |
| A83049 |
| ABPN32G900018 |
| ABPN32O900018 |
| AMS66104 |
| F347222 |
| F347252 |
| FLS83021 |
| FV331 |
| HD12130651 |
| HV148 |
| M66104 |
| M83021 |
| M83049 |
| MAE66104 |
| MD153242 |
| PC256 |
| PCV188 |
| R711004 |
| SA66104 |
| SSA83021 |
| V256 |
| WCV238 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
